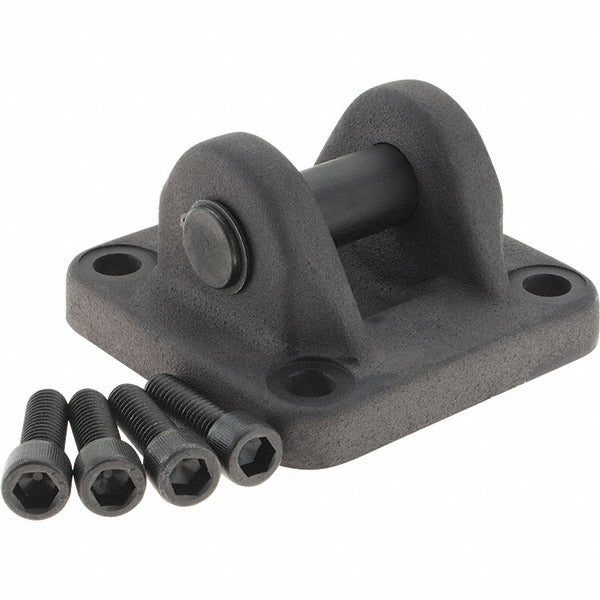

Parker L079710500 Air Cylinder Cap Fixed Clevis 5 in Bore

Product Description

The PARKER L079710500 is a cap fixed clevis accessory designed for use with pneumatic air cylinders. It provides a rigid, fixed mounting point at the cap end of the cylinder, allowing the cylinder to pivot on a pin for applications where angular movement is required during stroke. This clevis mounts to the cylinder cap end and is sized for a 5-inch bore cylinder. It is a machined steel component installed by mechanical technicians, maintenance professionals, and fluid power specialists working on industrial pneumatic systems.

This cap fixed clevis is intended for pneumatic cylinder assemblies running on compressed air in industrial, manufacturing, and automation environments. It is specifically engineered for Parker 3MA and 4MA Series cylinders with a 5-inch bore. Typical install scenarios include actuator mounting in material handling equipment, machine tools, and process automation systems where trunnion or clevis-style end mounting is required to accommodate off-axis loads or arc travel.

Key Features

• Fixed clevis design at the cap end provides a stable pivot mount point for angular cylinder motion
• Sized for 5-inch bore cylinders for precise dimensional fit without modification
• Compatible with Parker 3MA and 4MA Series cylinder families
• Functions as a direct OEM-style accessory replacement or new-build component
• Sold individually — package quantity of 1

Compatibility

Designed for use with Parker 3MA and 4MA Series air cylinders with a 5-inch bore size.

Installation Notes

Installation should be performed by a qualified mechanical technician or fluid power specialist. Before servicing any pneumatic cylinder assembly, isolate and depressurize the air supply and lock out the system per applicable OSHA lockout/tagout procedures. Verify bore size and series compatibility before installation. Secure all fasteners to appropriate mechanical standards and confirm free pivot movement before returning the system to service.
