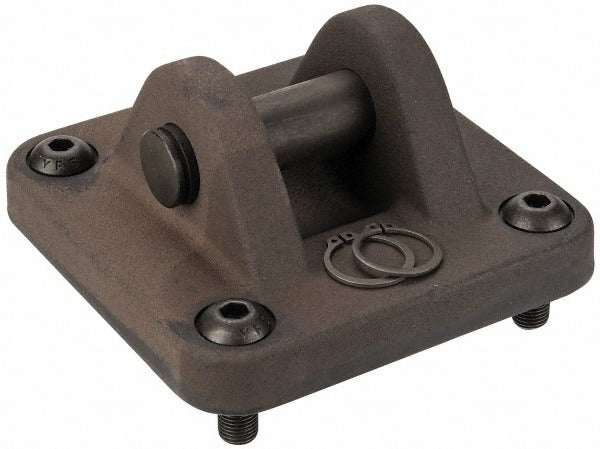

Parker L079710400 Air Cylinder Cap Fixed Clevis 4 Inch Bore

Product Description

The PARKER L079710400 is a cap fixed clevis accessory designed for use with Parker pneumatic air cylinders. This end cap mounts to the cap end of the cylinder and provides a fixed clevis attachment point, allowing the cylinder to pivot at that end during operation. It is engineered for industrial pneumatic systems where secure, rigid clevis mounting is required at the cap end. With a bore size of 4 inches and a weight of 2 pounds, this part is a direct-fit accessory intended for technicians and maintenance professionals working on pneumatic actuator assemblies.

This cap fixed clevis is used in industrial and commercial pneumatic actuator applications where Parker 3MA or 4MA series cylinders are installed. Typical install scenarios include machine automation, material handling equipment, and industrial process control systems. It is installed by maintenance technicians or industrial mechanics during initial cylinder assembly or when replacing a damaged clevis mount on an existing cylinder.

Key Features

• Fixed clevis design provides a stable pivot point at the cap end of the cylinder
• Fits 4 inch bore cylinders in the Parker 3MA and 4MA series
• Sold as a single unit for direct replacement or new assembly builds
• Lightweight at 2 pounds for ease of handling during installation
• OEM-style accessory for consistent fit and dimensional accuracy

Compatibility

Designed for use with Parker 3MA and 4MA Series air cylinders with a 4 inch bore size.

Installation Notes

Installation should be performed by a qualified industrial mechanic or pneumatic systems technician. De-energize and depressurize the pneumatic system fully before removing or installing any cylinder end cap or accessory. Verify bore size and series compatibility before installation. Follow applicable OSHA lockout/tagout procedures when working on pneumatic actuator systems.
