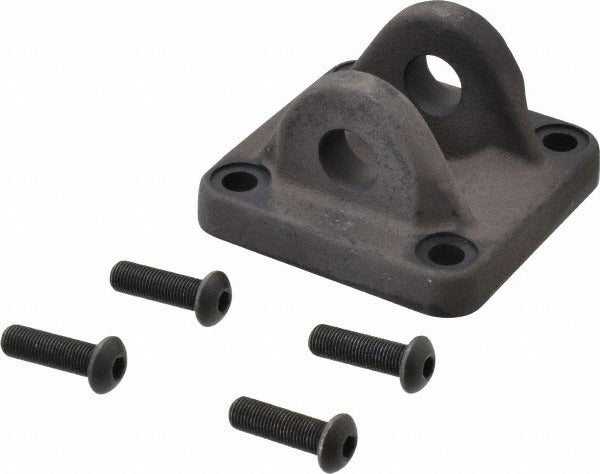

Parker L079710325 Air Cylinder Cap Fixed Clevis 3-1/4 in

Product Description

The PARKER L079710325 is a cap fixed clevis end fitting designed for pneumatic air cylinders with a 3-1/4 inch bore. This component mounts to the cap end of a compatible cylinder, converting it to a clevis-style pivot mount for applications where the cylinder must swing or articulate during actuation. It is a precision-machined accessory used by industrial maintenance technicians and pneumatic system specialists in manufacturing, automation, and general industrial environments. At 2 pounds, it is a solid, durable fitting suited for demanding cycle applications.

This cap fixed clevis is intended for use with Parker 3MA and 4MA series pneumatic air cylinders featuring a 3-1/4 inch bore. It is typically installed in industrial machinery, assembly equipment, and actuator mounting setups where a fixed clevis pivot point is required at the cap end. This part is appropriate for both new cylinder builds and field retrofits on existing 3MA or 4MA series cylinder installations.

Key Features

• Cap-end fixed clevis mount — provides a stable pivot point for articulating cylinder applications
• Designed specifically for 3-1/4 inch bore cylinders
• Compatible with Parker 3MA and 4MA series pneumatic cylinders
• Sold as a single unit per package
• At 2 pounds, provides solid construction for industrial duty cycles

Compatibility

Designed for use with Parker 3MA and 4MA series pneumatic air cylinders with a 3-1/4 inch bore.

Installation Notes

Installation should be performed by a qualified industrial maintenance technician or pneumatic systems specialist. Before installing or removing any cylinder accessory, depressurize the pneumatic circuit completely and lock out the air supply per OSHA lockout/tagout procedures. Verify that the clevis pin, mounting hardware, and bore size match the cylinder specifications before assembly. Do not exceed the rated load or operating pressure of the parent cylinder when using this clevis mount.
