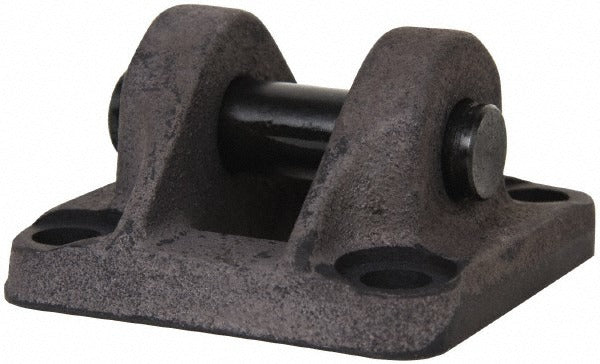

Parker L079710200 Air Cylinder Cap Fixed Clevis 2 in Bore

Product Description

The PARKER L079710200 is a cap fixed clevis accessory designed for use with pneumatic air cylinders. It mounts to the cap end of the cylinder and provides a fixed clevis attachment point, allowing the cylinder to pivot at that end during operation. This component is built for 2-inch bore cylinders and is installed by industrial maintenance technicians, millwrights, and pneumatic system specialists working on linear actuator assemblies. The fixed clevis design suits applications where a rigid, pinned connection at the cap end is required to transmit force or accommodate minor angular misalignment in the load path.

This cap fixed clevis is specifically matched to Parker 3MA and 4MA series air cylinders with a 2-inch bore. It is commonly used in industrial automation, material handling, and machine tool applications where pneumatic cylinders require a clevis-style end mount. The part serves as a direct OEM-style replacement or new-installation component for these cylinder series and is sold as a single unit.

Key Features

• Fixed clevis design provides a rigid pinned end mount at the cylinder cap
• Sized for 2-inch bore cylinders for a direct, matched fit
• Compatible with Parker 3MA and 4MA series cylinders
• Single-unit packaging for straightforward replacement or maintenance stock

Compatibility

Designed for use with Parker 3MA and 4MA series air cylinders with a 2-inch bore.

Installation Notes

Installation should be performed by a qualified millwright, maintenance technician, or pneumatic systems specialist. Before servicing any pneumatic cylinder, isolate and depressurize the air supply and verify that all stored energy in the system has been released. Secure all mechanical loads supported by the cylinder before removing or installing end accessories. Follow the cylinder manufacturer's torque and mounting specifications for the clevis pin and fasteners.
