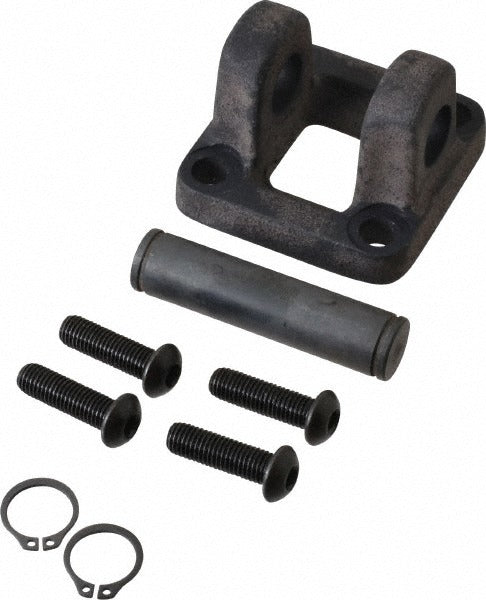

Parker L079710150 Air Cylinder Cap Fixed Clevis 1-1/2 in

Product Description

The PARKER L079710150 is a cap fixed clevis accessory designed for use with Parker pneumatic air cylinders. It mounts at the cap end of the cylinder to provide a fixed clevis-style attachment point, allowing the cylinder to pivot through a single plane during actuation. This hardware is used in pneumatic motion control assemblies found in industrial automation, machine tooling, and manufacturing equipment. The bore size is 1-1/2 inches. Installation is performed by maintenance technicians and automation specialists working with Parker 3MA and 4MA series cylinder configurations.

This cap fixed clevis is intended for pneumatic cylinder applications where a rigid, cap-end clevis mount is required. It is compatible with Parker 3MA and 4MA series air cylinders with a 1-1/2 inch bore. Typical install scenarios include assembly fixtures, actuated gates, clamping mechanisms, and linear motion systems where the cylinder must articulate at the cap end. This fitting is sold as a single unit and is a direct OEM-style accessory for the specified cylinder series.

Key Features

• Cap end fixed clevis mount for single-plane pivot motion
• Designed for 1-1/2 inch bore cylinders
• Compatible with Parker 3MA and 4MA series pneumatic cylinders
• OEM-style accessory for reliable fit and function
• Sold as individual unit — no minimum multiple required

Compatibility

Designed for use with Parker 3MA and 4MA series air cylinders with a 1-1/2 inch bore size.

Installation Notes

Installation is typically performed by a qualified industrial maintenance technician or pneumatic systems specialist. Before servicing or mounting cylinder accessories, depressurize the pneumatic system completely and lock out all energy sources per OSHA lockout/tagout procedures. Verify the clevis pin and mounting hardware are rated for the load and stroke requirements of the application before placing the assembly into service.
