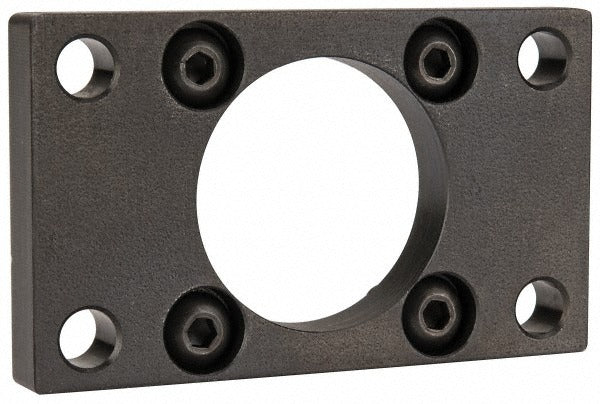

Parker L079700500 Rectangular Flange Mount 5 in Bore

Product Description

The PARKER L079700500 is a rectangular flange mount accessory designed for use with Parker 3MA and 4MA series air cylinders. This mounting component provides a rigid, flange-style attachment point that secures the cylinder to a machine frame or structural surface. At a 5-inch bore size, it is suited for medium-to-large pneumatic cylinder installations found in industrial automation, manufacturing equipment, and material handling systems. Installation is typically performed by millwrights, industrial maintenance technicians, or pneumatic system integrators. At 7 pounds, it is a substantial steel-class component built for load-bearing service.

This rectangular flange mount is used in pneumatic cylinder assemblies where a fixed, non-pivoting mount is required. The flange-style design distributes cylinder force across a broad mounting surface, making it appropriate for applications with consistent linear thrust direction. Common installation scenarios include production machinery, press equipment, and conveyor actuation systems where the Parker 3MA or 4MA series cylinder is the specified actuator.

Key Features

• Rectangular flange mount design for secure, rigid cylinder attachment
• Compatible with 5-inch bore 3MA and 4MA series Parker air cylinders
• Distributes cylinder thrust load across a wide mounting footprint
• Sold as a single unit per package

Compatibility

Designed for use with Parker 3MA and 4MA series air cylinders with a 5-inch bore size.

Installation Notes

Installation should be performed by a qualified industrial maintenance technician or pneumatic systems specialist. Depressurize and lock out the pneumatic system before removing or installing any cylinder mounting hardware. Ensure all mounting fasteners are torqued to the equipment manufacturer's specifications and that the flange seating surface is clean and flat before assembly. Verify bore size compatibility before installation to avoid misalignment or stress on the cylinder rod.
