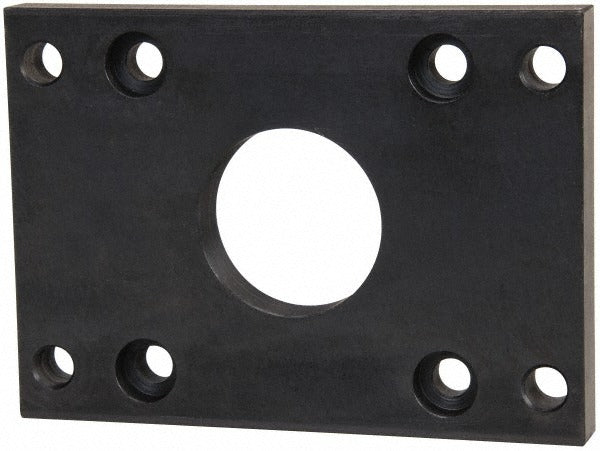

Parker L079700400 Rectangular Flange Mount 4 in Bore

Product Description

The PARKER L079700400 is a rectangular flange mount accessory designed for use with Parker 3MA and 4MA series air cylinders with a 4-inch bore. This mounting accessory provides a rigid, bolt-flange attachment point that secures the cylinder body to a machine frame or mounting surface, enabling precise alignment and stable operation in pneumatic linear motion applications. It is sized specifically for the 4-inch bore cylinder envelope and is installed by millwrights, maintenance technicians, and industrial mechanics during cylinder installation or replacement in automated and fluid power systems.

This rectangular flange mount is used in industrial pneumatic applications where a secure, fixed-position cylinder mount is required. Typical install scenarios include linear actuator assemblies on production machinery, material handling equipment, and industrial automation systems. The flange mount configuration is well suited for applications where the cylinder must be anchored at the rod-end or cap-end flange position. It is intended for use exclusively with Parker 3MA and 4MA series cylinders at the 4-inch bore size and is not interchangeable with other bore sizes or cylinder families.

Key Features

• Rectangular flange mount style provides a stable, multi-bolt attachment for rigid cylinder positioning
• Sized for 4-inch bore Parker cylinders for direct OEM-style fit
• Compatible with both 3MA and 4MA series Parker air cylinders
• Supports precise cylinder alignment in linear pneumatic motion assemblies
• Single-unit packaging suitable for individual replacement or new installation

Compatibility

Designed for use with Parker 3MA and 4MA series air cylinders at the 4-inch bore size.

Installation Notes

Installation should be performed by a qualified millwright or maintenance technician familiar with pneumatic cylinder mounting. Depressurize and lock out the pneumatic system before removing or installing any cylinder or mounting hardware, following applicable OSHA lockout/tagout procedures. Ensure all mounting fasteners are tightened evenly and that the cylinder is properly aligned with the load axis before returning the system to service. Do not exceed the cylinder manufacturer's rated operating pressure for the 3MA or 4MA series.
