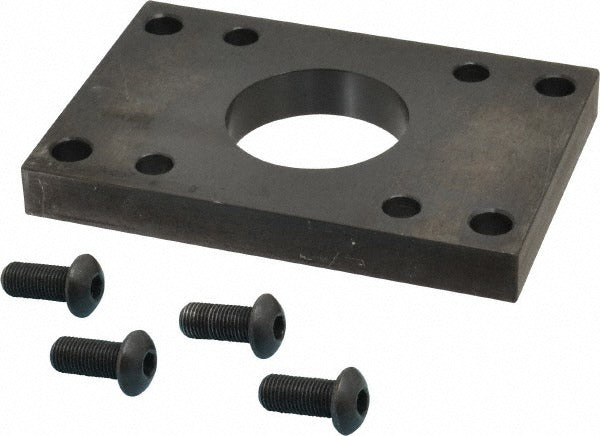

Parker L079700325 Rectangular Flange Mount 3-1/4 in Bore

Product Description

The PARKER L079700325 is a rectangular flange mount accessory designed for pneumatic air cylinder installations. It provides a rigid, bolt-down mounting solution that secures the cylinder body to a flat surface, allowing the rod end to transmit linear force without placing stress on the cylinder tube. The rectangular flange profile distributes load evenly across the mounting face. Weighing 4 pounds, this mount is built for industrial pneumatic systems where secure, repeatable cylinder positioning is required. Licensed millwrights, maintenance mechanics, and automation technicians typically install this component during machine assembly or cylinder replacement service.

This rectangular flange mount is intended for use in industrial pneumatic applications where a fixed, end-mount configuration is needed. It is designed specifically for 3-1/4 inch bore cylinders operating in the 3MA and 4MA series cylinder families. Typical install scenarios include actuator mounting on production machinery, assembly line tooling, and pneumatic press fixtures where the cylinder must be anchored squarely to a frame or plate. The mount accommodates the standard bolt pattern and body dimensions of the specified cylinder series.

Key Features

• Rectangular flange profile provides a stable, flat-surface bolt-down mounting configuration
• Sized for 3-1/4 inch bore cylinders in the 3MA and 4MA series
• Distributes cylinder body load across the flange face to reduce stress on the cylinder tube
• OEM-matched bolt pattern for direct fitment to specified cylinder series
• Weighs 4 pounds, indicating heavy-duty construction suitable for industrial service

Compatibility

Designed for use with Parker 3MA and 4MA Series pneumatic air cylinders with a 3-1/4 inch bore size.

Installation Notes

Installation should be performed by a qualified maintenance mechanic or millwright. Before removing or installing any cylinder mount, isolate and exhaust all pneumatic pressure from the circuit and lock out the air supply per applicable OSHA lockout/tagout procedures. Verify that the mounting surface is flat and that fastener engagement meets the equipment manufacturer's torque requirements. Do not overtighten flange bolts, as this can distort the cylinder body and affect seal integrity.
