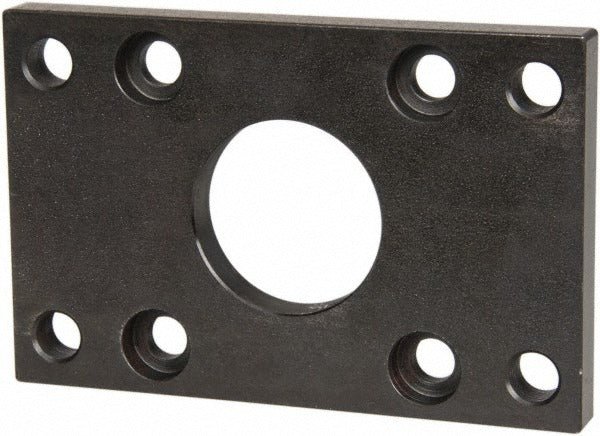

Parker L079700250 Air Cylinder Rectangular Flange Mount

Product Description

The PARKER L079700250 is a rectangular flange mount accessory designed for use with Parker 3MA and 4MA series air cylinders. It provides a rigid, bolt-down mounting solution that secures the cylinder body at the flange, allowing for precise alignment and stable positioning within pneumatic systems. This mount is sized for a 2-1/2 inch bore cylinder and is suited for industrial and commercial pneumatic applications where reliable cylinder retention is required. Maintenance technicians and pneumatic system installers working on automated equipment, press systems, or actuator assemblies are the primary users of this component.

This rectangular flange mount is used when a cylinder must be fixed at its end cap flange rather than supported along its body or rod. It is appropriate for installations where inline mounting is preferred and lateral support is needed. The mount is compatible with Parker 3MA and 4MA series cylinders in the 2-1/2 inch bore size, making it a direct-fit accessory for those specific cylinder families in both new builds and replacement service work.

Key Features

• Rectangular flange mount configuration provides stable end-mount support for the cylinder body
• Sized for 2-1/2 inch bore cylinders in the Parker 3MA and 4MA series
• Designed as a direct-fit OEM-style accessory for Parker cylinder families
• Sold individually — one mount per package
• Weighs 3 pounds, suitable for fixed structural mounting applications

Compatibility

Designed for use with Parker 3MA and 4MA series air cylinders with a 2-1/2 inch bore size.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Before servicing or mounting any cylinder component, depressurize the pneumatic circuit completely and lock out the air supply per site safety procedures. Secure all flange bolts evenly to ensure the cylinder remains properly aligned with the load axis. Refer to applicable OSHA and local mechanical codes for fastener requirements and pneumatic system safety standards.
