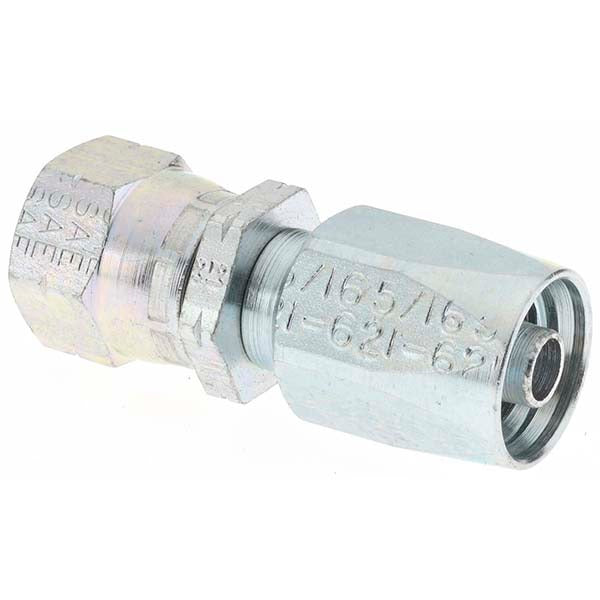

Parker KP82847 Female Swivel Fitting 5/8-18 SAE45

Product Description

The PARKER KP82847 is a reusable female swivel hose fitting designed for SAE 45-degree flare connections. It features a 5/8-18 inch threaded connection and accepts hose with a 3/8 inch outside diameter. Constructed from steel, this fitting provides durable, pressure-rated performance in hydraulic and fluid transfer lines. The swivel design allows the hose to be positioned without twisting during assembly, which simplifies installation in tight routing scenarios. Licensed HVAC technicians, plumbers, and fluid system mechanics install fittings of this type when building or servicing refrigerant, hydraulic, or compressed-air lines that require reusable, field-serviceable connections.

This fitting is suited for use in residential and light commercial fluid systems where SAE 45-degree flare connections are standard. Typical applications include refrigerant line sets, hydraulic hose assemblies, and compressed-air distribution where a reusable swivel end is needed to maintain serviceability. The 3/8 inch hose OD size fits common small-bore hose used in these systems. Supplied in a package quantity of four, making it practical for service technicians building multiple connections on a single job.

Key Features

• Reusable design allows disassembly and reinstallation without replacing the fitting
• Female swivel end accommodates SAE 45-degree flare mating connections
• 5/8-18 inch thread size for positive, leak-resistant seating
• Accepts 3/8 inch outside diameter hose
• Steel construction provides mechanical durability in pressurized service
• Package quantity of four units per order

Compatibility

Designed as an OEM-style reusable swivel fitting for hose assemblies requiring a SAE 45-degree flare female end with a 5/8-18 inch thread and 3/8 inch hose OD connection.

Installation Notes

Installation should be performed by a qualified technician familiar with SAE flare fitting assembly procedures. De-pressurize and isolate the line completely before disassembling or installing any hose fitting. Use appropriate hand tools to thread the fitting to the mating flare seat without over-torquing, which can distort the sealing surfaces. Inspect the hose end and fitting bore for debris or damage before assembly to ensure a leak-free connection.
