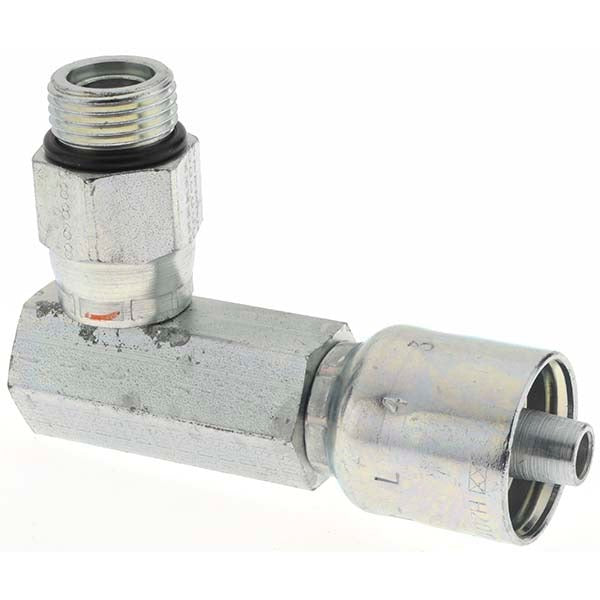

Parker KP81376 Hydraulic Hose 90 Degree Elbow Fitting

Product Description

The PARKER KP81376 is a 90-degree elbow hydraulic hose fitting designed for use in high-pressure hydraulic plumbing systems. Machined from steel with a male SAE threaded connection, this fitting transitions a hydraulic hose at a 90-degree angle to route lines in tight or angular installations. The fitting accepts hoses with a 0.375 inch inside diameter (hose size 6) and uses a 3/4-16 thread size. It is installed by hydraulic system technicians and maintenance mechanics in mobile equipment, industrial machinery, and fluid power applications where directional routing of hose assemblies is required.

This fitting is appropriate for use in both industrial and mobile hydraulic systems where a compact 90-degree hose-to-port transition is needed. It is designed for use with Parker Series 43 hose ends and is compatible with a broad range of Parker hose types including 187, TC, ST, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, TC, ST, 722, TC, ST, 787, TC, ST, 797, TC, ST, and 881 hoses. Typical installation scenarios include hydraulic circuits on construction equipment, agricultural machinery, and industrial presses where straight-run hose routing is not feasible.

Key Features

• 90-degree elbow geometry routes hose lines in confined or angled spaces
• Steel construction provides durability in high-pressure hydraulic service
• Male SAE threaded connection (3/4-16) for standard hydraulic port fitment
• Accepts 0.375 inch ID hose (hose size 6)
• Parker Series 43 fitting — compatible with a wide range of Parker hose types
• California Proposition 65 compliant

Compatibility

Designed for use with Parker 187, TC, ST, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 hoses with a 0.375 inch inside diameter and 3/4-16 male SAE thread.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power system assembly. Depressurize and fully relieve hydraulic system pressure before removing or installing any fittings. Use appropriate thread sealant or follow the fitting manufacturer assembly instructions for SAE straight thread connections. Verify hose and fitting compatibility by hose series and inside diameter before assembly.
