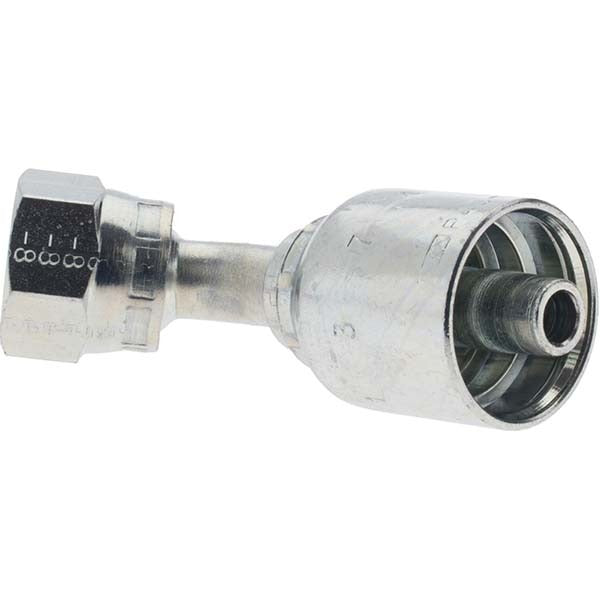

Parker KP81329 Hydraulic Hose Fitting 45 Deg Elbow Steel

Product Description

The PARKER KP81329 is a 45-degree elbow hydraulic hose fitting designed for use in medium- and high-pressure hydraulic systems. Manufactured from steel with a female JIC threaded connection, this fitting accepts a 3/8-inch (0.375-inch ID) hose and uses a 3/4-16 thread size. It is sized to Parker hose size 6 and is intended for permanent or field-assembly hydraulic lines in mobile equipment, industrial machinery, and fluid power circuits. Licensed hydraulic technicians and fluid power specialists are the primary installers. The fitting meets ISO 12151-5 standards and is subject to California Proposition 65 requirements.

This fitting is part of Parker Series 43 and is engineered for use with a wide range of Parker hydraulic hoses including the 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hose series. It is suited for both stationary industrial hydraulic systems and mobile equipment applications where a 45-degree elbow routing is required to manage hose path and reduce stress at connection points. Package quantity is 4 fittings per unit.

Key Features

• 45-degree elbow configuration for angled hose routing and reduced stress at connection points
• Steel construction for durability in hydraulic pressure environments
• Female JIC threaded connection, 3/4-16 thread size
• Fits 3/8-inch (0.375-inch ID) hose, Parker hose size 6
• Meets ISO 12151-5 standard for hydraulic fluid power hose fittings
• California Proposition 65 compliant; sold in packages of 4

Compatibility

Compatible with Parker hydraulic hose series: 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Always depressurize and de-energize the hydraulic system completely before removing or installing any fittings. Inspect threads and seating surfaces for damage before assembly. Ensure the fitting is torqued to the equipment manufacturer's specification for JIC connections and verify for leaks before returning the system to service.
