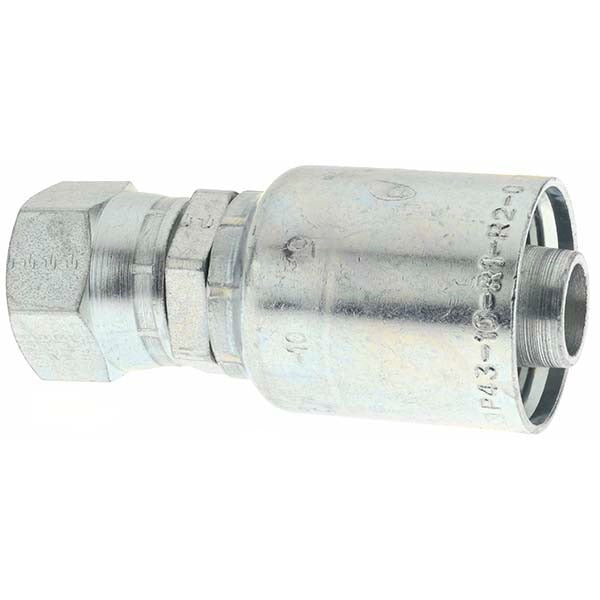

Parker KP81311 Female Jic 37 Deg Swivel Fitting 5/8 in

Product Description

The PARKER KP81311 is a female JIC 37-degree swivel fitting designed for use with hydraulic hose assemblies in high-pressure fluid power systems. Built from steel with a threaded connection type, this straight-body fitting accepts hose with a 0.625 inch inside diameter (hose size 10) and features a 5/8 inch thread size. The swivel design allows the fitting to rotate during assembly, reducing hose twist and simplifying installation in tight routing environments. It is installed by licensed hydraulic technicians and fluid power mechanics on mobile equipment, industrial machinery, and stationary hydraulic systems.

This fitting is suited for hydraulic plumbing applications where a JIC 37-degree flare connection is required at the hose end. The straight configuration makes it appropriate for standard inline routing without angled adapters. Its steel construction handles the pressures common in industrial and mobile hydraulic circuits. The fitting ships in a package quantity of four, making it practical for shop stocking and multi-point service work on equipment requiring multiple hose end replacements.

Key Features

• Female JIC 37-degree swivel seat for secure, leak-resistant flare connections
• 0.625 inch (10 mm) hose inside diameter for hose size 10 assemblies
• 5/8 inch thread size with straight body geometry
• Steel construction for durability in high-pressure hydraulic service
• Swivel design reduces hose twist during assembly and torquing
• Compliant with ISO 12151-5 and California PROP 65 requirements

Compatibility

Designed for use with Parker hose series 187 TC ST, 302, 304, 387 TC ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with JIC flare fitting assembly procedures. Always depressurize and bleed down the hydraulic system before disconnecting or installing any hose end fittings. Hand-tighten the swivel nut onto the mating male JIC seat before applying final torque with an appropriately sized open-end or flare-nut wrench. Do not over-torque — consult the hose assembly manufacturer guidelines for final assembly torque values appropriate to the thread size.
