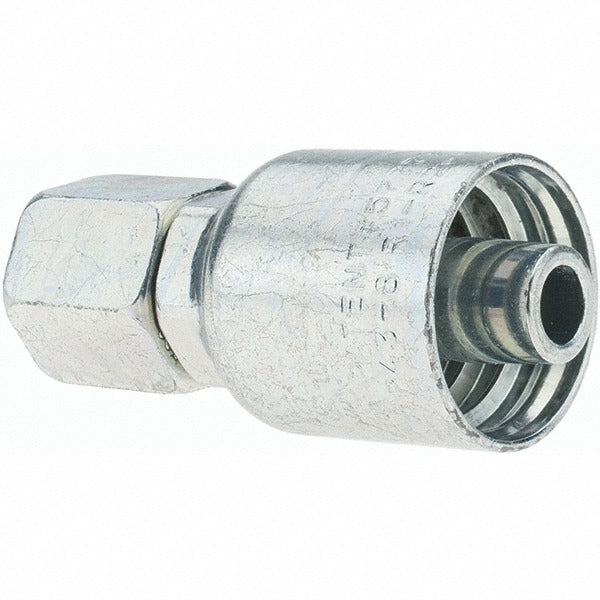

Parker KP81307 Female Jic 37 Deg Swivel Fitting 1/2 in

Product Description

The PARKER KP81307 is a female JIC 37-degree swivel fitting designed for use with hydraulic hose assemblies in fluid power systems. Machined from steel with a threaded connection, this straight fitting accepts hoses with a 0.5 inch inside diameter (hose size 8) and uses a 1/2 inch thread size. The overall length is 2.77 inches. This type of fitting is used by hydraulic system technicians and industrial maintenance professionals to create leak-resistant, pressure-rated connections between hoses and ports. The swivel design allows the hose to be positioned without twisting during final assembly, which reduces stress on the hose end and speeds up installation.

This fitting is intended for hydraulic hose assemblies operating in industrial, mobile equipment, and fluid power applications where a JIC 37-degree flare interface is specified. It is compatible with a range of Parker hose series and is suitable for use in high-pressure hydraulic circuits where steel construction and threaded connection integrity are required. Installation is performed by hydraulic hose assembly specialists or industrial mechanics.

Key Features

• Female JIC 37-degree swivel interface for leak-resistant, pressure-rated connections
• Steel construction for durability in demanding hydraulic service environments
• Straight shape with 0.5 inch (1/2 inch) hose inside diameter for hose size 8
• 1/2 inch thread size with threaded connection type
• Overall length of 2.77 inches for straightforward routing in tight assemblies
• Meets ISO 12151-5 standards; subject to California Proposition 65 requirements

Compatibility

Designed for use with Parker hose series including 187 TC ST, 302, 304, 387 TC ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 hoses. Part of the Parker Series 43 fitting family.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and drain the hydraulic system completely before removing or installing any fittings. Follow torque specifications provided by Parker and applicable fluid power system documentation for JIC swivel fittings. The swivel feature should be used to orient the hose without twisting the hose body during make-up.
