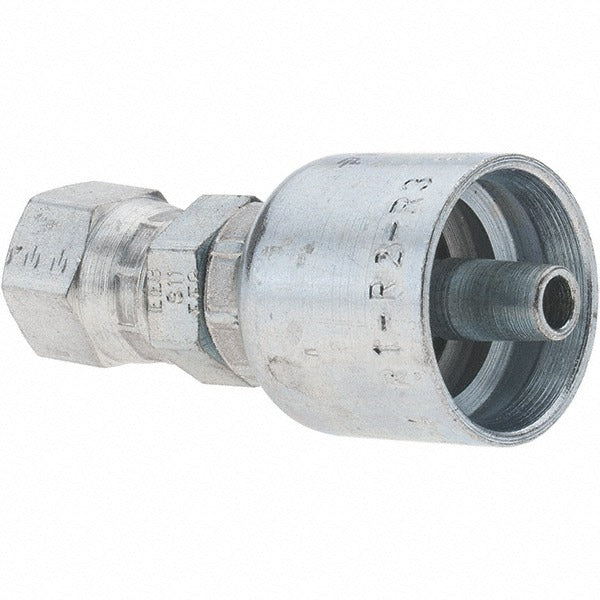

Parker KP81300 Female Jic 37 Deg Swivel Fitting 1/4 in

Product Description

The PARKER KP81300 is a straight, female JIC 37-degree swivel fitting designed for use with hydraulic hose assemblies. Machined from steel, it accepts a 1/4-inch hose inside diameter and connects via threaded engagement to hydraulic lines in mobile and industrial fluid power systems. The swivel design allows the fitting to rotate during installation, reducing hose twist and stress at the connection point. Overall length measures 1.94 inches. This fitting is installed by hydraulic technicians, millwrights, and fluid power specialists assembling or replacing hose end connections on equipment.

This fitting is intended for use with Parker hydraulic hose series including 187, TC, ST, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hoses. It is suited for both mobile equipment and stationary industrial hydraulic circuits where a 1/4-inch JIC swivel termination is required. The straight body configuration makes it appropriate for runs where a direct inline connection is needed without angular offset.

Key Features

• Female JIC 37-degree swivel end allows rotation during assembly to minimize hose twist
• 1/4-inch hose inside diameter matches Parker hose size 4 assemblies
• Straight body profile for inline hose termination
• Steel construction suitable for hydraulic fluid service
• 1.94-inch overall length for compact installation clearances
• Threaded connection type for standard JIC fluid power circuits

Compatibility

Compatible with Parker hydraulic hose series 187, TC, ST, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881. Conforms to ISO 12151-5 and meets California Proposition 65 requirements. Fits hose inside diameter of 0.25 inches (size 4).

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and drain the hydraulic system fully before removing or installing any hose end fittings. Use appropriate crimping or field-attachable assembly tooling as specified for the hose series being terminated. Follow applicable fluid power standards and equipment OEM torque and assembly requirements when making up JIC connections.
