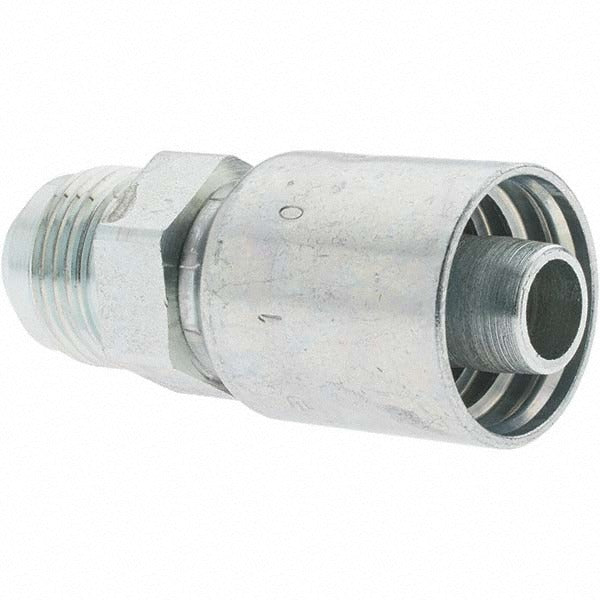

Parker KP81294 Male Sae 37 Jic Rigid Hose Fitting 5/8 in

Product Description

The PARKER KP81294 is a male SAE 37-degree JIC rigid straight hose fitting designed for use with hydraulic hose assemblies in high-pressure fluid systems. Constructed from steel, it features a 0.625-inch (5/8 inch) inside diameter and a 1-1/16-12 threaded connection. The straight body profile and threaded interface make it a standard-format end fitting for connecting hydraulic hose to JIC-ported components. It measures 3.07 inches overall length. Installation is performed by hydraulic technicians, fleet mechanics, and industrial maintenance trades working on mobile or stationary hydraulic circuits.

This fitting is suited for use in industrial, mobile, and construction hydraulic systems where SAE 37-degree JIC terminations are specified. It is rated for use with Parker hose series including 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hoses, covering a broad range of medium to high-pressure hydraulic hose types. The hose size designation is 10 in the Parker dash sizing system.

Key Features

• Male SAE 37-degree JIC flare seat for reliable leak-free connection
• Straight rigid body — no bend or elbow offset
• 0.625-inch (5/8 inch) hose inside diameter, hose size 10
• 1-1/16-12 thread size for direct JIC port engagement
• Steel construction for durability in hydraulic service environments
• Compliant with ISO 12151-5 and subject to California Proposition 65 disclosure

Compatibility

Designed for use with Parker hose series 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses with a 5/8-inch inside diameter.

Installation Notes

Hydraulic hose assemblies should be assembled and installed by qualified hydraulic technicians following the hose and fitting manufacturer's assembly instructions. Depressurize and bleed the hydraulic circuit fully before disassembling any existing connections. JIC 37-degree flare fittings are torqued to fitting-manufacturer specifications — do not over-torque, as this can damage the flare seat. Inspect the flare seat and threads for damage before assembly.
