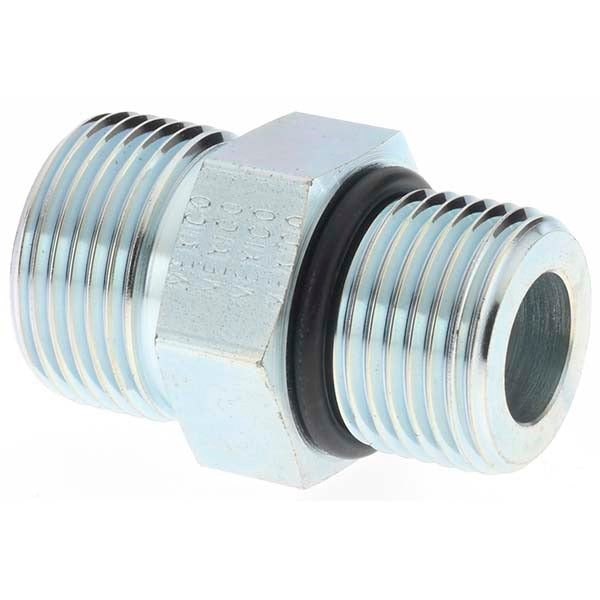

Parker KP80069 Hydraulic Hose Adapter 6000 Psi Seal-lok

Product Description

The PARKER KP80069 is a straight hydraulic hose adapter designed for high-pressure fluid power systems. It connects a 10 mm (0.625 inch OD) hydraulic hose to a 7/8-14 threaded port using a Seal-Lok face-seal connection type. Rated to 6,000 psi maximum working pressure, this adapter is built from steel for durability in demanding hydraulic circuits. At 1.69 inches overall length, it is a compact inline fitting suited for tight plumbing runs. It is installed by hydraulic system technicians and fluid power mechanics in mobile equipment, industrial machinery, and shop fabrication work.

This adapter is appropriate for use in both mobile hydraulic and stationary industrial hydraulic systems where a 10 mm hose end must terminate at a 7/8-14 SAE straight thread port. The Seal-Lok face-seal design provides leak-resistant performance under sustained high pressure. Typical install scenarios include cylinder lines, pump outlet plumbing, and manifold connections where pressure ratings of 6,000 psi are required. The straight geometry keeps routing simple when port orientation allows a direct inline connection.

Key Features

• 6,000 psi maximum working pressure rating for demanding hydraulic circuits
• Seal-Lok face-seal connection type for leak-resistant performance
• Straight shape simplifies inline plumbing where port alignment allows
• 7/8-14 thread size conforms to SAE 520120 standards
• Steel construction for strength and compatibility with common hydraulic fluids
• Compact 1.69 inch overall length suits space-constrained installations

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using a 10 mm (5/8 inch) hose diameter and a 7/8-14 SAE straight thread port, conforming to SAE 520120. Part of the PARKER F5OLO series.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed down the hydraulic system fully before removing or installing any fittings. Use appropriate torque wrenches and follow SAE or manufacturer torque guidelines for the thread size; do not over-torque steel fittings into ported components. Inspect the Seal-Lok face-seal surface and O-ring seating area for damage before assembly to ensure a leak-free connection.
