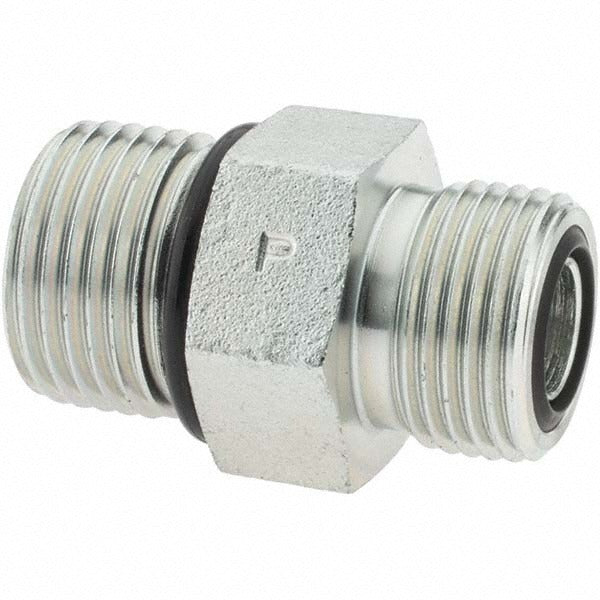

Parker KP80067 Hydraulic Hose Adapter 6000 Psi Steel

Product Description

The PARKER KP80067 is a straight hydraulic hose adapter designed for high-pressure fluid power applications. Built from steel with a Seal-Lok shaft interface, this adapter connects a 10 mm (0.5 inch OD) hose to a 7/8-14 threaded port and is rated for up to 6,000 psi maximum working pressure. The threaded connection type and Seal-Lok design provide a reliable, leak-resistant interface in demanding hydraulic circuits. At 1.59 inches overall length, the KP80067 is a compact, direct-fit component. Licensed HVAC and fluid power technicians, hydraulic system mechanics, and industrial maintenance professionals are the typical installers of this adapter.

This adapter is suited for use in mobile hydraulic equipment, industrial machinery, and fluid power systems where SAE 520120 standard compliance is required. The straight configuration makes it appropriate for inline connections where angular fittings are not needed. It is commonly installed at pump outlets, valve ports, cylinder inlets, and hose assembly termination points in both stationary and mobile hydraulic systems. The SAE 520120 series designation confirms the fitting meets recognized industry dimensional and performance standards for hydraulic hose adapters.

Key Features

• Rated to 6,000 psi maximum working pressure for high-pressure hydraulic circuits
• Seal-Lok shaft design provides a face-seal connection that minimizes leak points
• Straight shape supports direct inline installations without angular offset
• 7/8-14 thread size conforms to SAE straight thread port standards
• Steel construction delivers durability in industrial and mobile equipment environments
• Meets SAE 520120 standard for dimensional and performance conformance

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a 10 mm hose size, 0.5 inch OD, with a 7/8-14 threaded Seal-Lok port connection conforming to SAE 520120.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and fully isolate the hydraulic circuit before removing or installing any fittings. Inspect the sealing face and threads for damage before installation. Torque to the fitting manufacturer and system designer specifications using appropriate hydraulic fitting tools.
