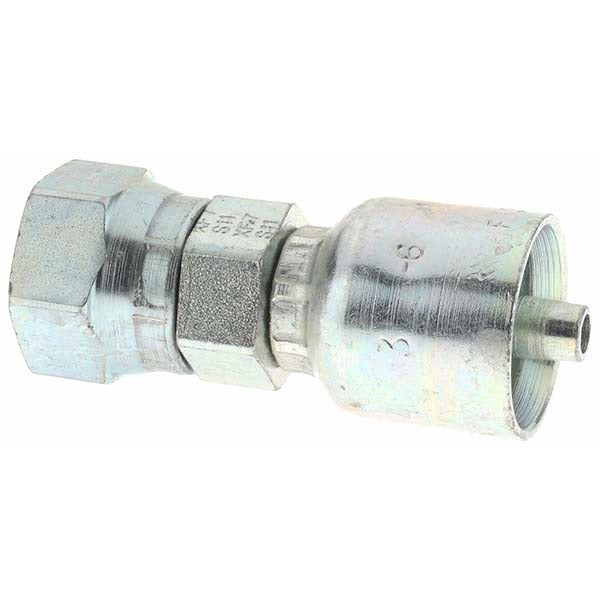

Parker KP80035 Female Seal-lok Swivel Short Fitting

Product Description

The PARKER KP80035 is a female Seal-Lok swivel short fitting designed for hydraulic hose assemblies. Manufactured from steel with a straight shape and threaded connection type, this fitting accepts hoses with a 0.25 inch inside diameter (hose size 4) and uses a 3/8 inch thread size. The overall length is 2.14 inches. It is installed by hydraulic system technicians and mechanics working on mobile or industrial hydraulic circuits requiring leak-free Seal-Lok face-seal connections. The package quantity is 2 fittings per unit.

This fitting is suited for use in industrial and mobile hydraulic applications where a female Seal-Lok swivel end is required at the hose termination point. The short-body design is appropriate in space-constrained installations. It is compatible with a wide range of Parker hydraulic hose series and is commonly used in construction equipment, agricultural machinery, and industrial hydraulic plumbing where reliable face-seal integrity is critical.

Key Features

• Female Seal-Lok swivel short fitting configuration for face-seal hydraulic connections
• Steel construction for durability in high-pressure hydraulic service
• 0.25 inch hose inside diameter (hose size 4) with 3/8 inch thread size
• Straight shape with threaded connection type
• Overall length of 2.14 inches (54 mm) for compact installations
• Meets ISO 12151-1 standard; listed under California Proposition 65

Compatibility

Compatible with Parker hose series 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any fittings. Clean all mating surfaces and inspect the Seal-Lok face-seal and O-ring for damage before assembly. Follow the fitting manufacturer and equipment OEM torque guidelines for the thread size to ensure a leak-free connection.
