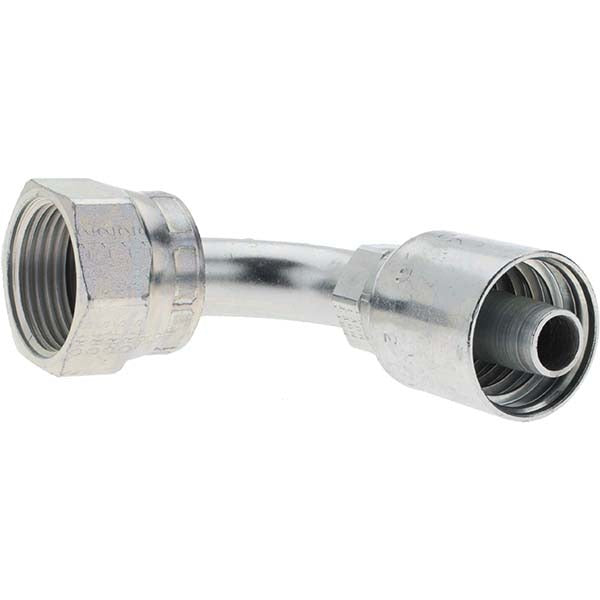

Parker KP80029 Hydraulic Hose Swivel 90 Elbow Fitting

Product Description

The PARKER KP80029 is a short drop female Seal-Lok swivel 90-degree elbow fitting designed for hydraulic hose assemblies. Manufactured from steel, this fitting accepts a 1/2-inch (0.5 inch) hose inside diameter and connects via a 3/4-inch threaded Seal-Lok interface. The 90-degree elbow geometry allows routing in tight spaces where a straight fitting would create excessive bend stress on the hose. It is installed by hydraulic system technicians and fluid power mechanics in industrial, mobile, and construction equipment applications. The fitting ships in a package quantity of two units per order.

This fitting is suited for use in hydraulic hose assemblies requiring a short drop configuration with a swivel end. The Seal-Lok face-seal connection type provides a reliable, leak-resistant joint under hydraulic pressure. It is appropriate for both new assembly work and field repair of existing hydraulic lines. The swivel feature allows the fitting body to rotate during installation, reducing the chance of hose twist and simplifying routing in confined plumbing runs.

Key Features

• Short drop female Seal-Lok swivel design reduces hose twist during installation
• 90-degree elbow geometry supports tight-clearance hose routing
• Steel construction for durability in hydraulic service environments
• 3/4-inch threaded Seal-Lok face-seal connection for leak-resistant joints
• Compatible with a wide range of Parker hose series (see Compatibility)
• Meets ISO 12151-1 standards; California PROP 65 compliance noted

Compatibility

This fitting is specified for use with Parker hose series 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses, per manufacturer specifications. Hose inside diameter is 1/2 inch; thread size is 3/4 inch. PARKER Series 43 fitting line.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and bleed down the hydraulic system completely before removing or installing any fitting. Inspect the Seal-Lok face-seal surface and O-ring for damage prior to assembly; do not reuse a damaged O-ring. Torque the fitting according to the Parker assembly specification for the applicable thread size and do not rely on feel alone to judge proper engagement.
