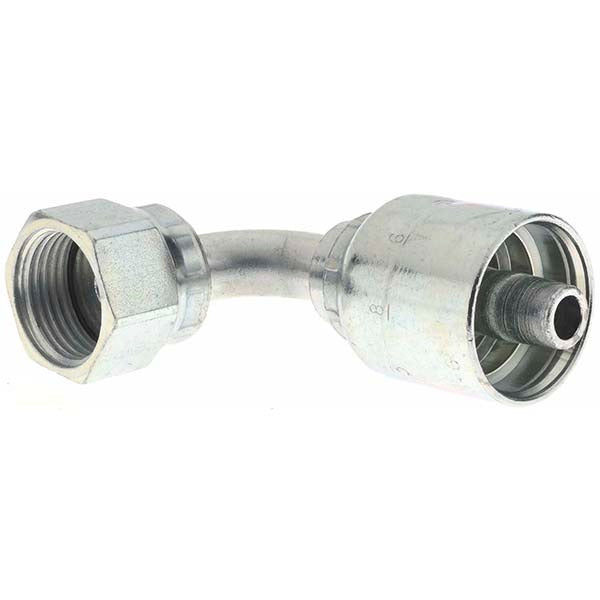

Parker KP80025 Hydraulic Hose Swivel 90 Elbow 3/8 in

Product Description

The PARKER KP80025 is a short drop female Seal-Lok swivel 90-degree elbow fitting designed for hydraulic hose assemblies. Built from steel, this threaded fitting accepts a 3/8-inch (0.375-inch ID) hose and uses a 13/16-16 thread size. The Seal-Lok face-seal design minimizes leakage points, making it a reliable choice in high-pressure hydraulic circuits. The 90-degree elbow geometry allows routing in tight spaces where straight fittings cannot clear adjacent components. This fitting is sold in a package quantity of two and is part of Parker's Series 43 line. Installation is typically performed by hydraulic system technicians, millwrights, or fluid power specialists working on mobile or industrial equipment.

This fitting is suited for use in hydraulic hose assemblies on mobile machinery, agricultural equipment, construction equipment, and industrial hydraulic circuits. It is specifically listed as compatible with a range of Parker hose series, including 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hoses, in TC and ST configurations where applicable. The short drop body profile keeps the assembly compact when working in confined routing paths.

Key Features

• Short drop female Seal-Lok swivel 90-degree elbow configuration for compact, leak-resistant hydraulic routing
• Seal-Lok face-seal connection type reduces external leakage in high-pressure systems
• Steel construction for durability in demanding hydraulic environments
• 13/16-16 thread size with 0.375-inch (3/8-inch) hose inside diameter
• Swivel design allows fitting rotation during assembly to ease installation without twisting the hose
• Meets ISO 12151-1 standards; subject to California Proposition 65 requirements

Compatibility

Compatible with Parker hose series 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 in TC and ST configurations as applicable. Hose inside diameter must be 3/8 inch (0.375 inches) and thread engagement must match 13/16-16 port specifications.

Installation Notes

Hydraulic fittings of this type are installed by qualified fluid power technicians or hydraulic system mechanics. Always depressurize and bleed the hydraulic system completely before disconnecting or installing any fitting. Torque to the fitting manufacturer's published specifications using a calibrated torque wrench — do not over-torque steel fittings, as thread damage can cause leakage. Inspect the Seal-Lok face-seal surface and mating port for nicks or contamination before assembly.
