Parker KP80022 Hydraulic Hose Fitting Seal-lok 90 Elbow

Product Description

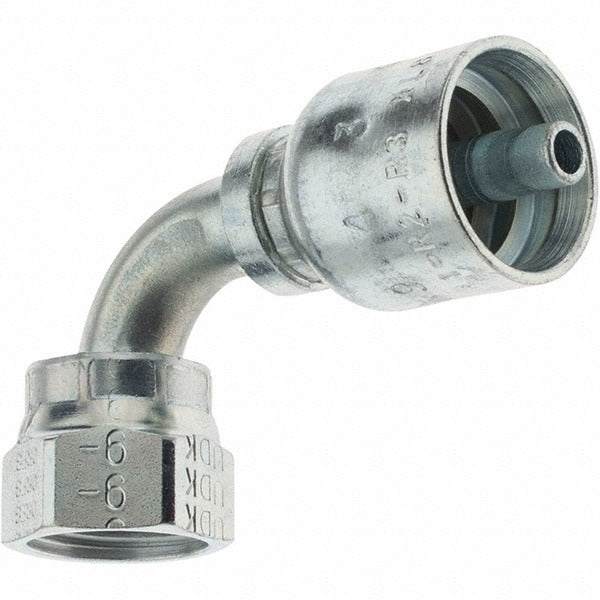

The PARKER KP80022 is a short drop female Seal-Lok swivel 90-degree elbow fitting designed for hydraulic hose assemblies. Machined from steel with a threaded connection, it accepts a 1/4-inch (0.25 inches) inside diameter hose and uses an 11/16-16 thread size. The swivel design allows the fitting to rotate during installation, reducing hose twist and assembly stress. This fitting is installed by hydraulic technicians and fluid power specialists in industrial, mobile, and agricultural hydraulic systems wherever a 90-degree directional change is needed between a hose and a port.

This fitting is suited for use in hydraulic circuits requiring a compact 90-degree transition at the hose end. The short drop profile keeps the assembly close to the bulkhead or manifold, reducing clearance issues in tight installations. It is compatible with a broad range of Parker hydraulic hoses including the 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 series hoses. Both TC and ST hose configurations are supported where listed.

Key Features

• Short drop body profile minimizes clearance requirements in congested hydraulic assemblies
• Seal-Lok face seal design reduces leak paths compared to tapered thread connections
• Swivel end allows hose rotation during torquing to prevent assembly twist
• Steel construction for durability in high-pressure hydraulic service
• 11/16-16 thread size for precise fitment with compatible Parker hose ends
• Compliant with ISO 12151-1 and subject to California Proposition 65 requirements

Compatibility

Compatible with Parker hose series: 187 TC/ST, 302, 304, 387 TC/ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC/ST, 722 TC/ST, 787 TC/ST, 797 TC/ST, and 881 hoses. Part of Parker Series 43 fittings.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power systems. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Use appropriate hydraulic fitting wrenches and follow the hose and fitting manufacturer assembly guidelines for Seal-Lok face seal connections. Inspect the sealing face and O-ring seat for damage before assembly to ensure a leak-free joint.
