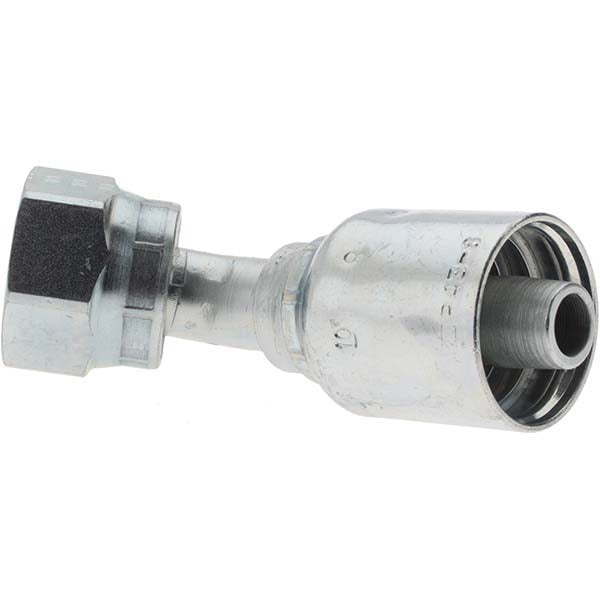

Parker KP80016 Hydraulic Hose Fitting 45 Degree Elbow

Product Description

The PARKER KP80016 is a 45-degree elbow hydraulic hose fitting designed for connecting hose assemblies in high-pressure hydraulic systems. Built from steel with a Seal-Lok end connection, it provides a reliable, leak-resistant interface at the hose-to-port junction. The fitting accepts a 0.5 inch (1/2 inch) inside diameter hose and uses a 5/8 inch threaded connection. It is sold in a package quantity of two. Licensed hydraulic technicians and fluid power mechanics typically install this fitting during hose assembly fabrication or replacement on mobile and industrial hydraulic equipment.

This fitting is suited for use in mobile equipment, industrial machinery, and hydraulic power unit applications where a 45-degree elbow geometry is required to route hose runs efficiently and reduce strain at connection points. It is compatible with Parker Series 43 fittings and is certified to ISO 12151-1 standards. The Seal-Lok design provides face-seal sealing, which is preferred in systems requiring zero-leak performance at hydraulic connections.

Key Features

• 45-degree elbow geometry for tight routing and reduced hose stress at connection points
• Steel construction for durability in high-pressure hydraulic applications
• Seal-Lok face-seal end connection for leak-resistant performance
• 0.5 inch (1/2 inch) hose inside diameter, 5/8 inch thread size
• Meets ISO 12151-1 standard for hydraulic fluid power hose fittings
• Package includes 2 fittings per unit

Compatibility

Compatible with Parker hose series: 187 TC, ST; 302; 304; 387 TC, ST; 422; 424; 426; 436; 471TC; 471ST; 472TC; 482TC; 482ST; 487 TC, ST; 722 TC, ST; 787 TC, ST; 797 TC, ST; and 881 Hoses. Belongs to Parker Series 43 fitting family.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic mechanic. Depressurize and isolate the hydraulic system fully before removing or installing any fittings. Inspect mating surfaces for damage before assembly, as Seal-Lok face-seal connections require clean, undamaged sealing faces to function correctly. Follow the hose and fitting manufacturer torque guidelines for the applicable thread size and always verify there are no leaks before returning the system to service.
