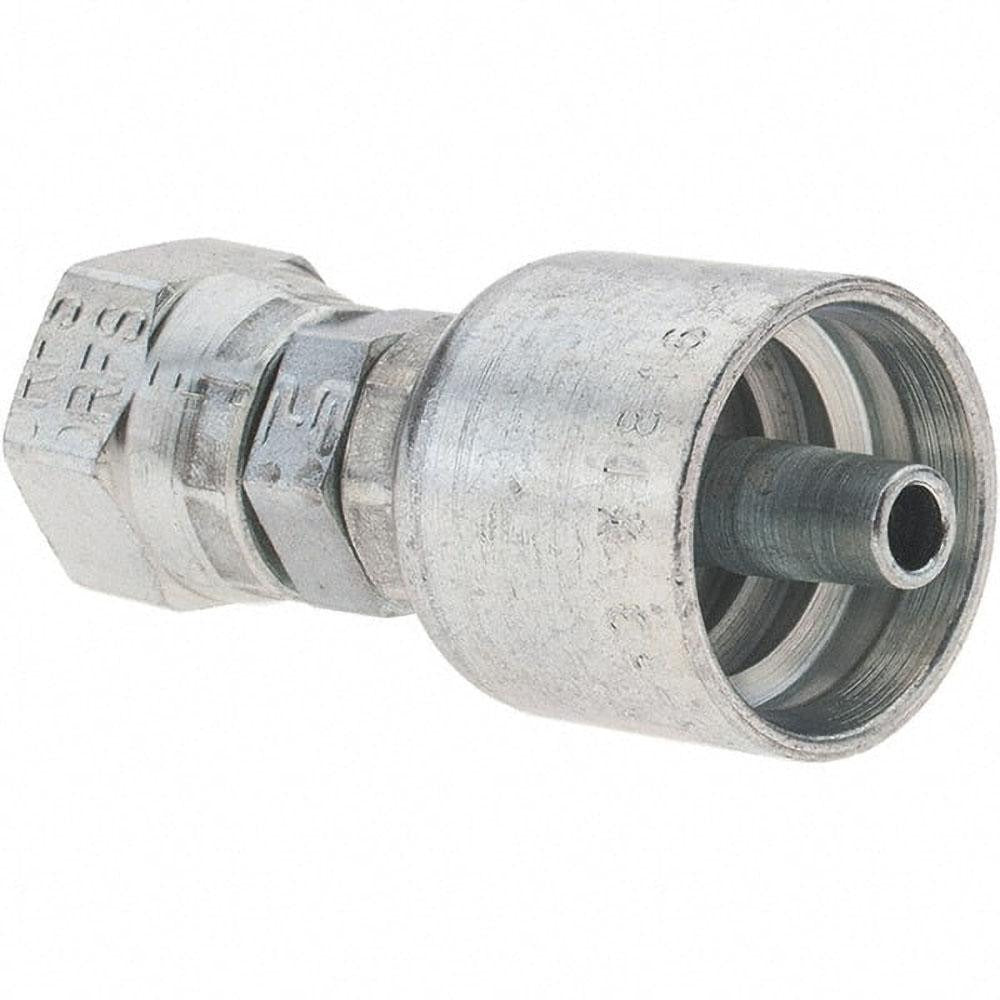

Parker KP80006 Female Seal-lok Swivel Short Fitting

Product Description

The PARKER KP80006 is a female Seal-Lok swivel short fitting designed for use with hydraulic hose assemblies. It features a straight shape with a threaded connection type, a 0.5 inch (1/2 inch) hose inside diameter, and a 3/4 inch thread size. Constructed from steel, this fitting delivers reliable performance in hydraulic systems where a secure, leak-resistant Seal-Lok interface is required. With an overall length of 2.48 inches, it is suited for compact routing applications. Hydraulic technicians and fluid power specialists typically install this type of fitting during hose assembly fabrication or field repair work.

This fitting is intended for use in hydraulic hose assemblies across industrial and mobile equipment applications. The swivel design allows rotational adjustment during installation, reducing assembly stress on the hose. The short body configuration is appropriate where space is limited and a straight hose-end connection is needed. It is sold in a package quantity of two units.

Key Features

• Female Seal-Lok swivel interface provides a reliable, leak-resistant connection
• Straight shape supports direct inline hose-to-port routing
• Steel construction for durability in hydraulic service environments
• 3/4 inch thread size with 0.5 inch hose inside diameter
• Overall length of 2.48 inches suits compact assembly configurations
• Meets ISO 12151-1-SWSA standard; listed under California PROP 65

Compatibility

Designed for use with Parker hose series 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power hose assembly procedures. Depressurize and isolate the hydraulic circuit completely before removing or installing any hose fittings. Use appropriate assembly tooling to ensure the swivel nut is torqued to the fitting manufacturer and system specifications, and verify that the Seal-Lok face seal and mating port are clean and undamaged before assembly. Inspect the completed assembly for leaks before returning the system to service.
