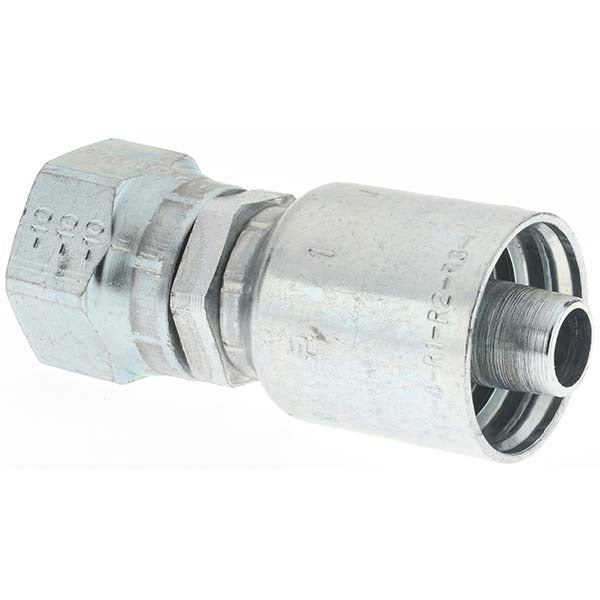

Parker KP80005 Female Seal-lok Swivel Short Fitting

Product Description

The PARKER KP80005 is a female Seal-Lok swivel short fitting designed for hydraulic hose assemblies in mobile and industrial fluid power systems. Built from steel with a straight, threaded connection, this fitting accepts a 0.5-inch inside diameter hose (hose size 8) and measures 2.3 inches in overall length. The Seal-Lok face-seal design provides a leak-resistant connection that outperforms traditional JIC flare joints in high-vibration environments. Installation is performed by hydraulic system technicians assembling or repairing hose circuits on mobile equipment, industrial machinery, and power units. This fitting ships in a package quantity of two.

This fitting is suited for use in hydraulic hose assemblies where a compact, straight female Seal-Lok swivel termination is required. It is part of Parker Series 43 fittings and is compatible with a defined range of Parker hose series commonly found on agricultural, construction, and industrial hydraulic systems. The short-body swivel configuration aids routing in tight spaces where a standard-length fitting would create interference.

Key Features

• Female Seal-Lok face-seal swivel design for leak-resistant hydraulic connections
• Straight shape with threaded connection for direct inline hose termination
• Steel construction for durability in high-pressure hydraulic service
• 5/8-inch thread size with 0.5-inch (1/2-inch) hose inside diameter
• Short-body configuration for use in space-constrained routing
• Meets ISO 12151-1-SWSA standard; California PROP 65 listed

Compatibility

Specified for use with Parker 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses.

Installation Notes

This fitting is installed by qualified hydraulic technicians assembling or servicing hydraulic hose circuits. Depressurize and bleed down the hydraulic system completely before disassembling any hose or fitting. Inspect the Seal-Lok face-seal surface and O-ring for damage prior to assembly. Follow the applicable fluid power standards and equipment manufacturer torque guidelines when making up the connection; do not overtighten, as this can damage the face-seal surface.
