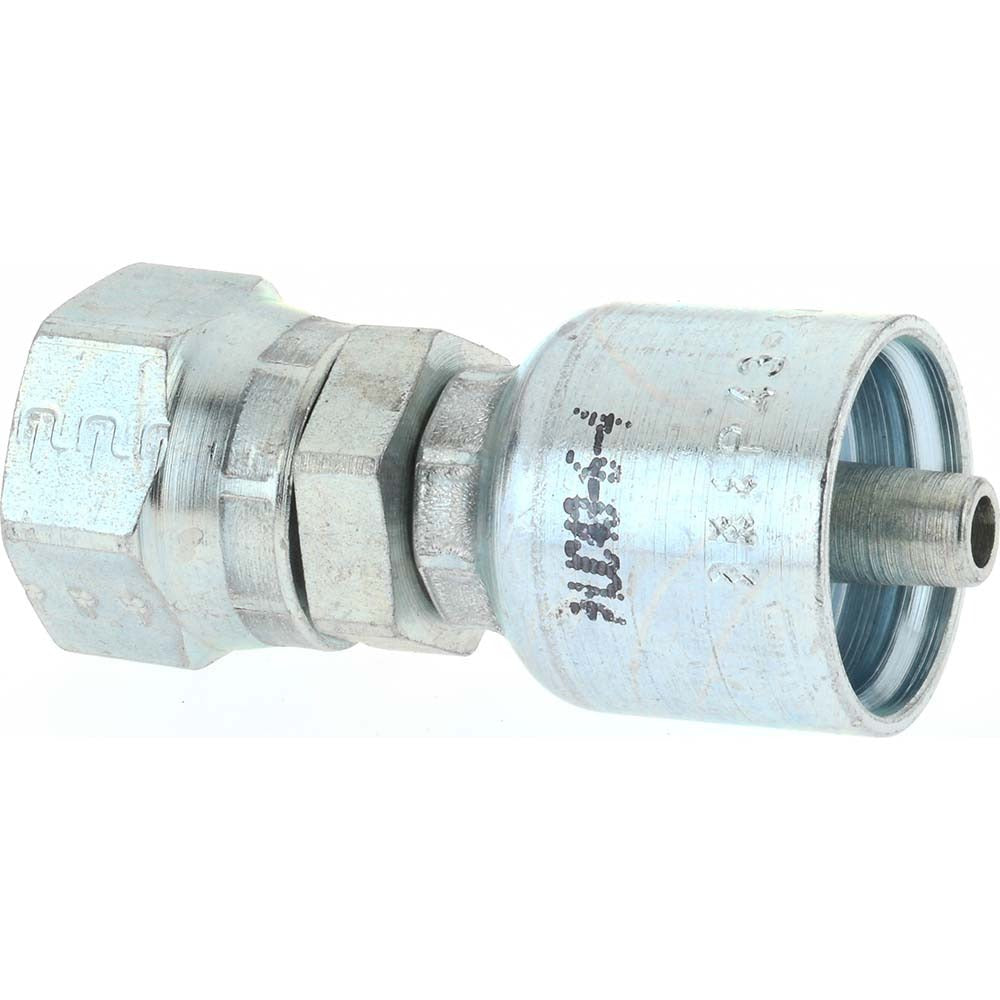

Parker KP80001 Female Seal-lok Swivel Short Fitting

Product Description

The PARKER KP80001 is a female Seal-Lok swivel short fitting designed for hydraulic hose assemblies. Built from steel with a straight, threaded connection type, it accepts hoses with a 0.25 inch inside diameter (hose size 4) and threads at 11/16-16. The overall length is 1.67 inches. This fitting is installed by hydraulic system technicians in industrial, mobile, and fluid-power applications where a secure, leak-resistant swivel connection is required at the hose end. The Seal-Lok face-seal design minimizes the risk of leakage compared to tapered-thread fittings, making it a common choice in high-pressure hydraulic circuits.

This fitting is suited for use in hydraulic hose assemblies where a female Seal-Lok swivel termination is specified. It is compatible with Parker Series 43 fittings and is engineered for use with a wide range of Parker hydraulic hoses. Typical installation scenarios include mobile equipment, industrial machinery, and fluid-power systems requiring reliable swivel-end connections at pressures common to medium- and high-pressure hydraulic circuits. The straight body configuration simplifies routing in tight or inline plumbing arrangements.

Key Features

• Female Seal-Lok face-seal swivel design reduces leak points versus tapered-thread alternatives
• Steel construction for durability in demanding hydraulic service
• 11/16-16 thread size for positive, consistent thread engagement
• Straight body shape simplifies inline hose routing
• 0.25 inch (1/4 inch) hose inside diameter fits hose size 4 assemblies
• Meets ISO 12151-1-SWSA and California Prop 65 standards

Compatibility

Designed for use with Parker hoses including the 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hose series. Part of the Parker Series 43 fitting family.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed the hydraulic system fully before disassembling any hose or fitting. Ensure mating surfaces are clean and free of debris before assembly, as Seal-Lok face-seal fittings rely on a clean, undamaged sealing surface for leak-free performance. Torque to the fitting manufacturer specifications for the thread size and consult applicable fluid-power industry standards during assembly.
