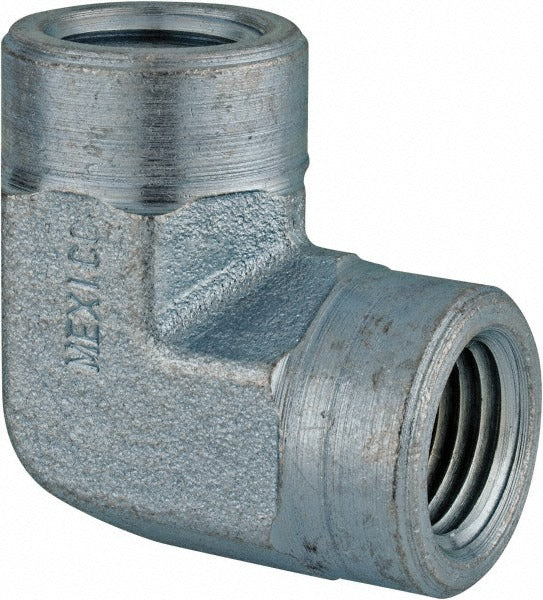

Parker KP79143 90 Degree Female Elbow 1800 Psi Fnpt Steel

Product Description

The PARKER KP79143 is a 90-degree female elbow pipe fitting designed for high-pressure industrial piping systems. Constructed from steel, it connects two female NPT-threaded lines at a right angle, redirecting flow without the need for additional adapters. With a maximum working pressure of 1800 psi, this fitting handles demanding fluid and pneumatic applications. It features FNPT x FNPT connections on both ends in a 1 x 1 inch thread size. Licensed plumbers, pipefitters, and industrial maintenance technicians are the typical installers. Each package contains 2 fittings.

This elbow fitting is suited for industrial piping runs where a 90-degree change in direction is required on a female-threaded line. Common applications include hydraulic systems, compressed air lines, oil and gas distribution headers, and general-purpose fluid handling systems operating at or below 1800 psi. The steel construction makes it appropriate for environments where durability and pressure integrity are priorities over corrosion resistance.

Key Features

• 90-degree female elbow geometry for right-angle pipe routing
• 1800 psi maximum working pressure rating
• FNPT x FNPT connection type on both ports
• 1 x 1 inch female thread size on both ends
• Steel construction for high-strength, high-pressure service
• Sold in a package of 2 fittings

Compatibility

Designed as an OEM-style replacement or new-installation fitting for industrial piping systems with 1 inch female NPT threaded connections rated up to 1800 psi.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable codes such as the IPC or ASME B31 piping standards. Depressurize and isolate the piping system fully before removing or installing any fittings. Apply an appropriate thread sealant or PTFE tape to the male threads mating into this fitting to ensure a leak-free joint. Do not overtighten; use a calibrated pipe wrench and follow standard NPT make-up practices.
