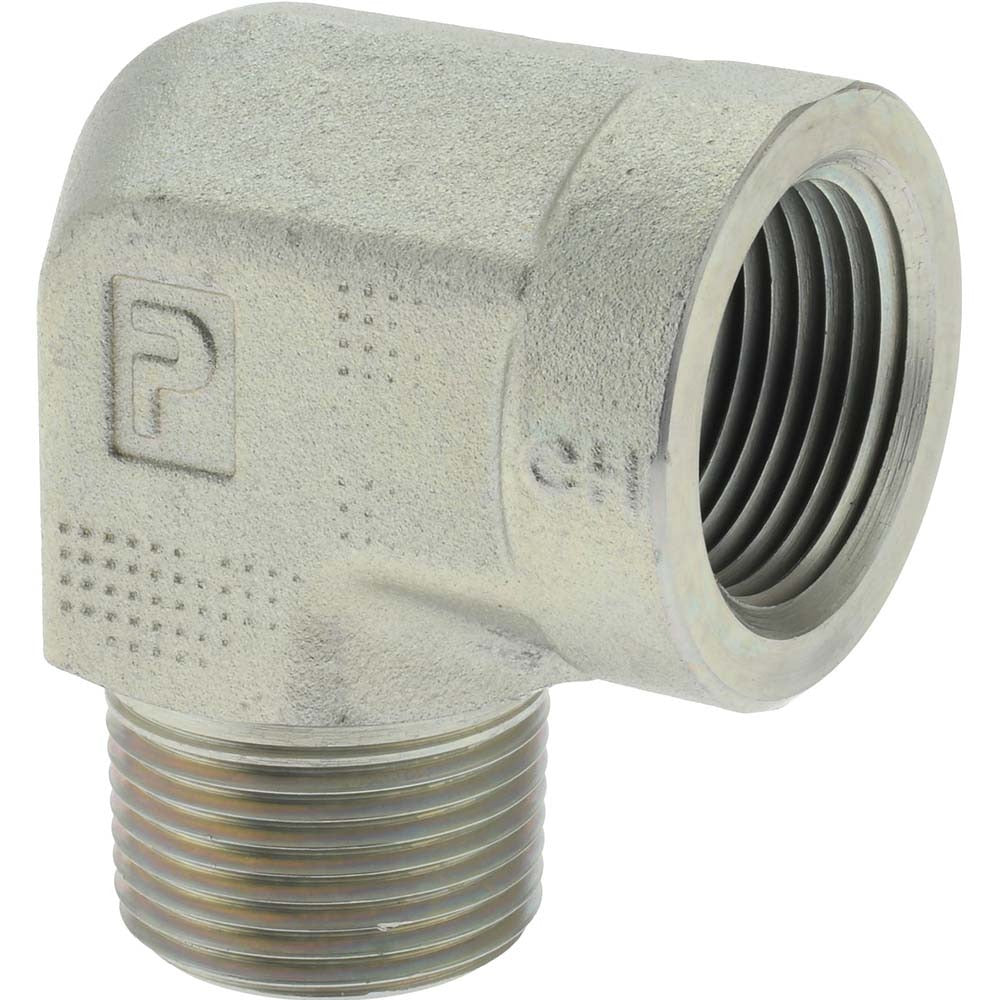

Parker KP79137 Hydraulic Hose 90 Degree Elbow 1800 Psi

Product Description

The PARKER KP79137 is a 90-degree elbow hydraulic hose fitting designed for high-pressure fluid conveying applications in hydraulic systems. Constructed from steel with a male NPTF threaded connection, this fitting provides a secure, leak-resistant seal at working pressures up to 1,800 psi. The 90-degree elbow geometry allows hose routing in tight spaces where a straight fitting would cause excessive hose bend radius or clearance issues. It is sized for a 16 mm hose with a 1-11/2 thread and conforms to SAE 140239 standards. Installation is typically performed by hydraulic system technicians and industrial mechanics during hose assembly or repair work.

This fitting is suited for mobile hydraulic equipment, industrial machinery, and stationary hydraulic power units where threaded NPTF connections are specified. The 90-degree elbow orientation is commonly used at pump ports, valve manifolds, and cylinder connections where straight hose routing is not practical. The steel construction handles the demands of standard hydraulic fluid service across a wide range of industrial and mobile equipment environments.

Key Features

• 90-degree elbow geometry for routing hoses in confined or angled installations
• Steel construction for durability under hydraulic system pressures
• Male NPTF threaded connection for leak-resistant tapered thread seal
• 1,800 psi maximum working pressure rating
• Conforms to SAE 140239 standard
• Series CD fitting, compatible with standard hydraulic hose assemblies

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a 16 mm hose size, 1-11/2 NPTF thread, and 90-degree elbow configuration at up to 1,800 psi working pressure.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Always depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Use appropriate thread sealant or thread tape approved for NPTF hydraulic fittings and follow the equipment manufacturer's torque and assembly procedures. Inspect the mating port thread condition before installation to ensure a proper seal.
