Parker KP76456 Hydraulic Hose Swivel Adapter 6000 Psi

Product Description

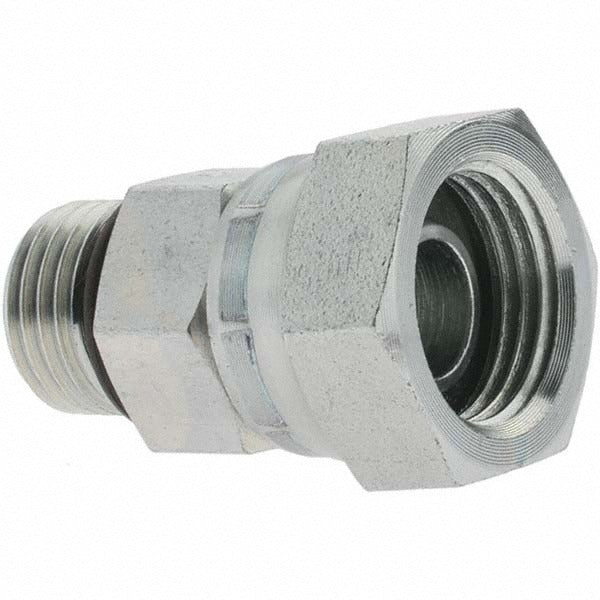

The PARKER KP76456 is a hydraulic hose swivel adapter designed for high-pressure fluid power systems. It connects hydraulic hoses to ports and fittings using a swivel mechanism that allows rotational movement during installation, reducing hose twist and stress. Rated to 6,000 psi, this adapter is built from steel for durability under sustained hydraulic pressure. The 9/16-18 thread size and SAE ORB (O-Ring Boss) shaft type ensure a leak-resistant, standardized connection. Licensed hydraulic system technicians and industrial maintenance professionals are the typical installers of this fitting.

This adapter is suited for mobile hydraulic equipment, industrial machinery, and fluid power systems where hose routing requires a swivel connection at the port. The 9 mm hose size and 9/16 inch hose diameter make it appropriate for medium-duty hydraulic lines operating at elevated pressures. It is commonly installed at pump ports, valve manifolds, and cylinder connections where rigid fittings would create hose alignment problems or excessive strain.

Key Features

• 6,000 psi pressure rating for high-pressure hydraulic service
• Swivel design reduces hose twist and stress during installation and operation
• SAE ORB (O-Ring Boss) thread type provides a leak-resistant port connection
• 9/16-18 thread size meets SAE standardized fitting dimensions
• Steel construction for strength and resistance to hydraulic fluid environments
• Sold in packages of 4, with a minimum order quantity of 1

Compatibility

Designed as an OEM-style swivel adapter for hydraulic hose assemblies using 9 mm hose with SAE ORB port connections rated to 6,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic systems technician. Depressurize and bleed the hydraulic system completely before removing or installing any fitting. Inspect the O-ring sealing surface on the mating port for damage before assembly, and use a new, properly seated O-ring to ensure a leak-free connection. Torque to the fitting and port manufacturer specifications using calibrated tools — do not over-torque steel fittings into aluminum ports.
