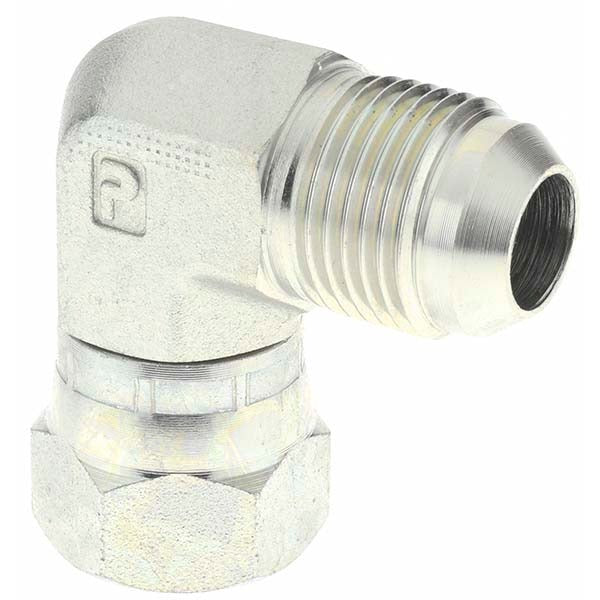

Parker KP76410 Steel Swivel 90 Elbow 5/8 in Flare X Flare

Product Description

The PARKER KP76410 is a steel flared tube swivel 90-degree elbow fitting designed for use in high-pressure fluid and pneumatic line assemblies. It features a 37-degree flare angle with flare-to-flare end connections, allowing the fitting to swivel for easier alignment during installation. Rated to a maximum working pressure of 5,000 psi, this elbow is built for demanding hydraulic and fluid power applications. The swivel design reduces the need to rotate tubing during assembly, making it a preferred choice for tight routing situations. Licensed trade professionals and fluid power specialists install this type of fitting in both stationary and mobile equipment systems.

This fitting is suited for applications requiring a 90-degree direction change in a 5/8-inch OD steel tube line. Common installation scenarios include hydraulic systems, refrigeration lines, and fluid power circuits where a rigid 37-degree flare connection standard is specified. The swivel capability accommodates angular misalignment and simplifies routing in confined spaces. Sold in packages of four, making it practical for service shops and contractors maintaining multiple systems or performing batch installations.

Key Features

• 90-degree swivel elbow design allows fitting rotation during assembly for easier tube alignment
• 37-degree flare angle with flare x flare end connections for secure, leak-resistant joints
• Rated to 5,000 psi maximum working pressure for demanding hydraulic and fluid power service
• Steel construction provides durability in high-pressure and industrial environments
• 5/8-inch tube OD sizing fits standard tube lines in fluid power and refrigeration circuits
• Sold in a package of four units, suitable for shop stock or multi-unit installations

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid power tube assemblies requiring a 5/8-inch OD, 37-degree flare, swivel 90-degree elbow connection.

Installation Notes

Installation should be performed by a qualified hydraulic or fluid power technician. Before service, depressurize the system completely and verify zero residual pressure before disconnecting any existing fittings. Use appropriate flaring tools to ensure the tube end meets the 37-degree flare specification before threading the fitting. Torque the fitting connection in accordance with the system manufacturer or industry fluid power standards, and inspect for leaks after pressurizing the system.
