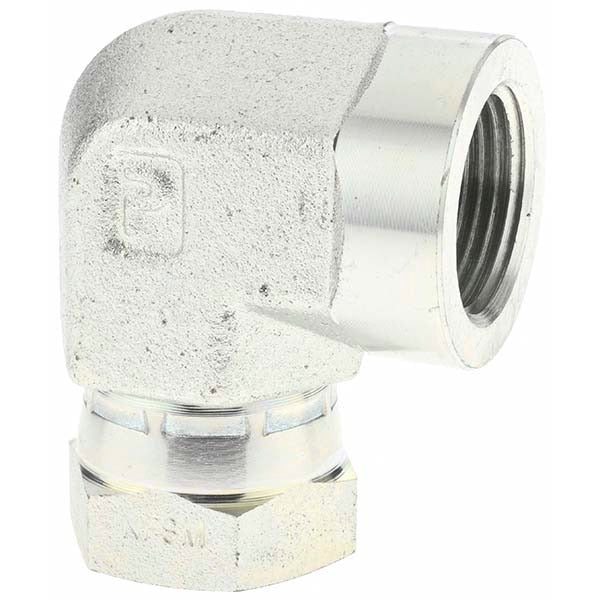

Parker KP76314 Hydraulic Hose Swivel Elbow Adapter 3000 Psi

Product Description

The PARKER KP76314 is a hydraulic hose swivel elbow adapter designed to connect hydraulic hose lines at an angled orientation while maintaining a leak-free, rotatable joint. Built from steel with a 3/4-14 NPTF thread interface, this fitting handles working pressures up to 3,000 psi. The swivel design allows the hose to rotate freely after installation, reducing hose stress and preventing torque-induced line damage. It is sized for 12 mm hose connections and is appropriate for use in industrial hydraulic circuits, mobile equipment, and fluid power systems. Installation is typically performed by hydraulic system technicians or fluid power specialists.

This adapter is used in hydraulic plumbing applications where a 90-degree directional change is needed between a hose assembly and a ported component such as a pump, cylinder, valve, or manifold. The NPTF thread form provides a pressure-tight mechanical seal without relying solely on thread sealant. Typical installation scenarios include mobile hydraulic equipment, construction machinery, and industrial press circuits where space constraints require an elbow fitting rather than a straight adapter.

Key Features

• Swivel design allows hose rotation after assembly, reducing torsional stress on hose lines
• 3,000 psi working pressure rating suitable for medium- to high-pressure hydraulic circuits
• 3/4-14 NPTF thread provides a dry-seal mechanical connection
• Steel construction for durability in demanding hydraulic environments
• 12 mm hose size compatibility for standard hydraulic hose assemblies

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic systems requiring a 12 mm swivel elbow adapter with a 3/4-14 NPTF thread connection rated to 3,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings, and follow applicable fluid power safety standards. NPTF threads are designed to seal mechanically; inspect threads for damage before assembly and apply thread sealant only as required by the system manufacturer. Do not overtighten swivel fittings, as excessive torque can damage the swivel seat and compromise the rotating function.
