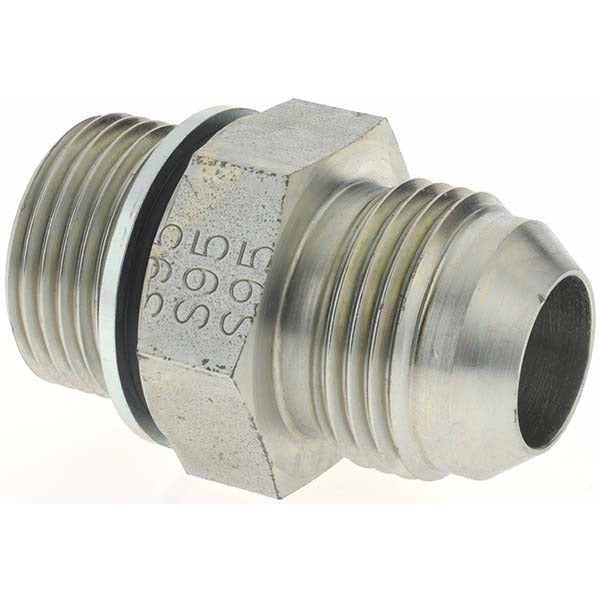

Parker KP71873 Iso Port Adapter 3000 Psi Steel M27x2

Product Description

The PARKER KP71873 is a straight ISO port adapter designed for high-pressure hydraulic and pneumatic line connections. Rated to 3,000 psi maximum working pressure, this steel adapter features an M27x2 metric thread and a flare x metric end connection geometry. It is built to operate across a wide temperature range, from -65 degrees F to 500 degrees F, making it suitable for demanding industrial and mobile equipment environments. Licensed plumbers, hydraulic technicians, and fluid power specialists use this fitting to transition between flare-style and metric port connections in accordance with ISO 8434-2 and SAE J514 standards.

This adapter is used wherever a flare-to-metric port conversion is required in hydraulic systems, pneumatic circuits, or fluid transfer lines. Its straight configuration makes it well suited for inline installations where space or routing constraints call for a direct, low-profile connection. Typical applications include mobile hydraulic equipment, industrial machinery, and OEM fluid power assemblies that specify M27x2 metric porting.

Key Features

• 3,000 psi maximum working pressure rating for high-pressure hydraulic and pneumatic service
• M27x2 metric thread for compatibility with ISO-ported components
• Flare x metric adapter end connection transitions between flare and metric port styles
• Steel construction for strength and durability in industrial environments
• Wide operating temperature range: -65 degrees F to 500 degrees F
• Meets ISO 8434-2 and SAE J514 standards

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and pneumatic systems requiring M27x2 metric port connections with flare-style line adapters per ISO 8434-2 and SAE J514.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic or pneumatic circuit fully before removing or installing any fittings. Use appropriate wrenches and follow torque guidelines specified in the relevant ISO 8434-2 or SAE J514 documentation for the fitting size. Inspect sealing surfaces for damage before assembly and do not reuse damaged fittings.
