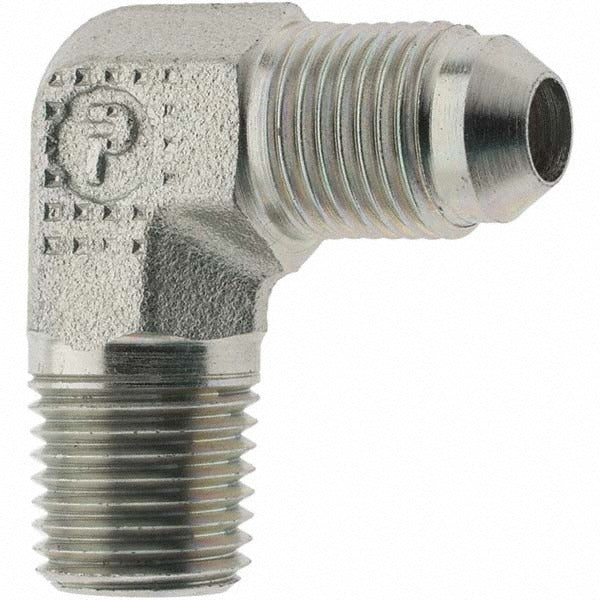

Parker KP70874 Hydraulic Hose 90 Elbow 6000 Psi Nptf

Product Description

The PARKER KP70874 is a 90-degree elbow hose fitting designed for hydraulic systems requiring a reliable angled connection at high pressure. Built from steel with NPTF threaded ends, this fitting accepts hose with a 0.3125-inch outside diameter and uses a 1/4-18 thread size. It is rated for a maximum working pressure of 6000 psi, making it appropriate for demanding hydraulic circuits in industrial and mobile equipment applications. Installation is performed by qualified hydraulic technicians or fluid power mechanics as part of hose assembly or system maintenance work.

This fitting is suited for hydraulic hose assemblies where a 90-degree change in direction is required at a threaded port. The NPTF thread form provides a dry-seal connection without relying solely on thread sealant, which is important in high-pressure hydraulic circuits. It is commonly used in industrial machinery, mobile hydraulics, and equipment manufacturing where space constraints or routing requirements call for a right-angle fitting at a 1/4-18 NPTF port.

Key Features

• 90-degree elbow geometry for right-angle hose routing in tight spaces
• Rated to 6000 psi maximum working pressure for high-pressure hydraulic service
• NPTF threaded connection provides a dry-seal fit at the port interface
• Steel construction for durability in hydraulic fluid environments
• 1/4-18 thread size matches standard NPTF port specifications
• Part of the Parker CTX series, conforming to SAE 070202 standards

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using 0.3125-inch outside diameter hose with a 1/4-18 NPTF threaded port interface.

Installation Notes

Installation should be performed by a licensed or experienced hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the NPTF threads on both the fitting and the mating port for damage before assembly, and apply thread sealant only as appropriate for the system fluid and pressure rating. Follow SAE and equipment manufacturer guidelines for proper assembly torque and hose routing clearances.
