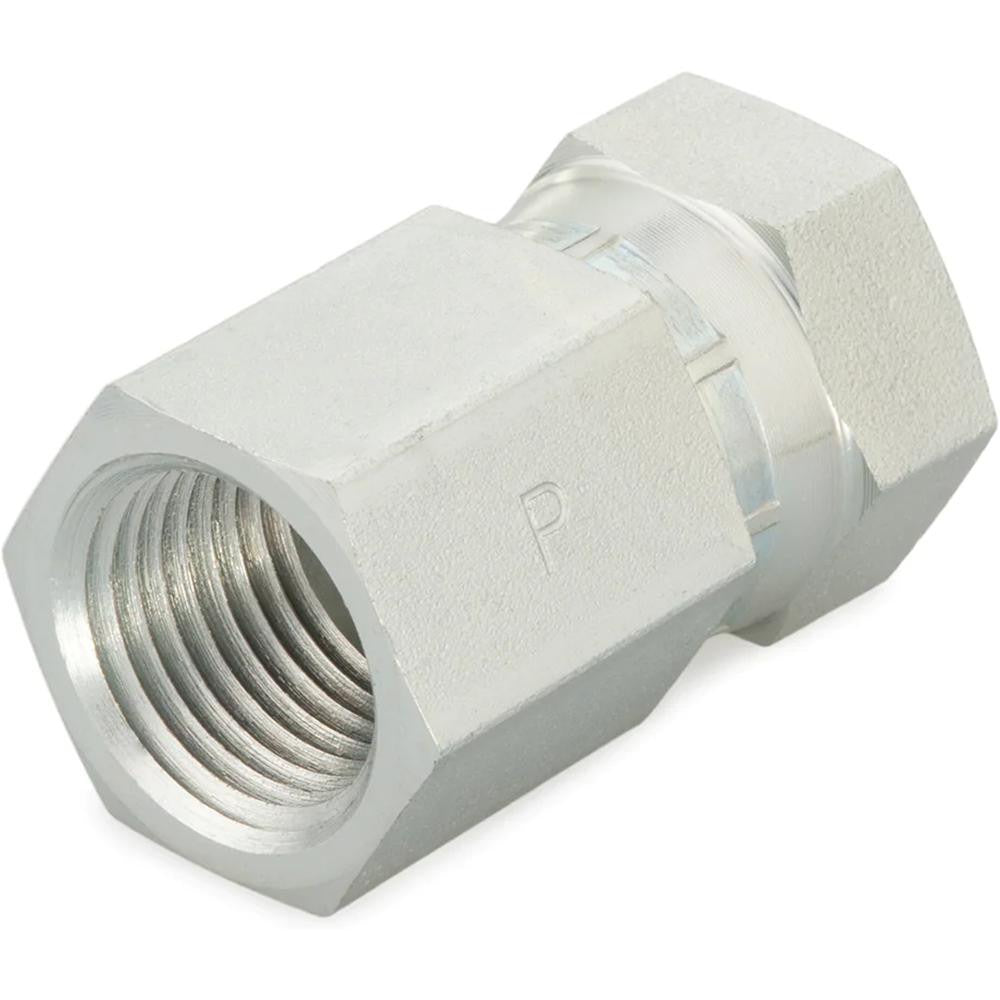

Parker KP66670 Hydraulic Hose Swivel Fitting 6000 Psi

Product Description

The PARKER KP66670 is a straight swivel fitting designed for hydraulic hose assemblies operating at pressures up to 6,000 psi. Built from steel with an NPTF threaded connection, it accepts a 1/4-inch hose diameter and uses a 1/4-18 thread size. The swivel design allows the hose to rotate without twisting during installation or system movement, reducing stress on the hose assembly. At 1.43 inches in overall length, this compact fitting is suited for tight routing situations in hydraulic systems. It is installed by hydraulic technicians and fluid power mechanics on mobile equipment, industrial machinery, and high-pressure fluid lines where a secure, leak-resistant NPTF seal is required.

This fitting is appropriate for hydraulic systems in industrial, agricultural, and mobile equipment applications where rated working pressure reaches 6,000 psi. The NPTF thread profile creates a mechanical seal at the thread without relying solely on a sealant. The straight configuration makes it a direct in-line fitting choice for standard hose-to-port connections. Package quantity is 4 units per pack, with a minimum order quantity of 1 pack. It is suited for use by licensed fluid power technicians and hydraulic system installers working on high-pressure circuits.

Key Features

• 6,000 psi maximum working pressure rating
• NPTF threaded connection provides a dry-seal mechanical thread fit
• Swivel design allows hose rotation to prevent twist during assembly
• Steel construction for durability in high-pressure hydraulic service
• Straight shape for direct in-line hose-to-port connections
• Compact overall length of 1.43 inches for tight installation spaces

Compatibility

Designed for use with 1/4-inch hydraulic hoses requiring a 1/4-18 NPTF threaded swivel fitting rated to 6,000 psi, conforming to SAE 140131 standards, Parker Series 0207.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. NPTF threads are designed to seal on the threads themselves; inspect threads for damage before assembly and apply thread sealant only if required by the system specification. Torque to the system manufacturer or hose assembly manufacturer guidelines using calibrated tooling.
