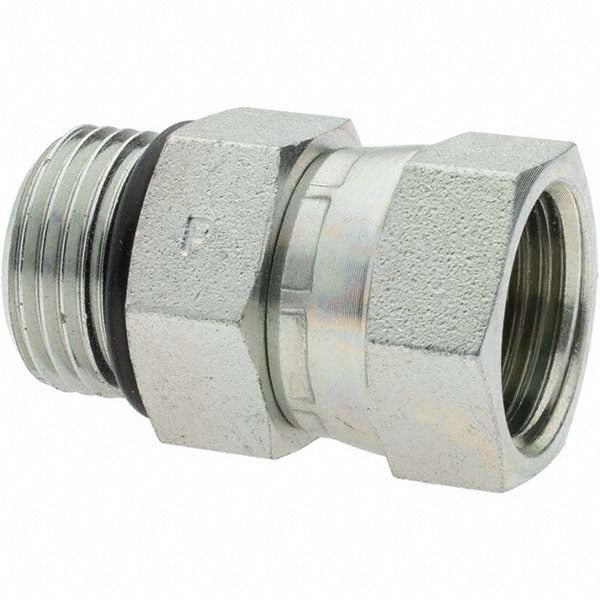

Parker KP65444 Hydraulic Hose Swivel Fitting 5000 Psi

Product Description

The PARKER KP65444 is a straight swivel fitting designed for high-pressure hydraulic hose assemblies. It features a 7/8-14 SAE ORB (O-Ring Boss) threaded connection and is rated for a maximum working pressure of 5,000 psi. The fitting accommodates 1/2-inch hose diameter and is constructed from steel for durability in demanding hydraulic circuit applications. At 1.73 inches in overall length, it is a compact, inline swivel fitting that allows hose rotation without loosening the connection. It is installed by hydraulic technicians and fluid power specialists in industrial, mobile, and OEM equipment systems.

This fitting is suited for hydraulic systems where hose movement or routing requires a swivel joint to prevent line twist and stress. Typical applications include mobile equipment, construction machinery, agricultural equipment, and industrial hydraulic power units. The SAE ORB thread standard provides a reliable, leak-resistant seal using an O-ring at the port face. The straight configuration makes it appropriate for in-line connections where hose and port alignment are coaxial. It is sold in a package quantity of two.

Key Features

• 5,000 psi maximum working pressure for high-pressure hydraulic circuit use
• 7/8-14 SAE ORB threaded connection with O-ring face seal for leak resistance
• Swivel design allows hose rotation to prevent twist and reduce stress on the assembly
• Straight configuration for in-line hose-to-port connections
• Steel construction for strength in industrial and mobile equipment environments
• Compact 1.73-inch overall length for tight-space installations

Compatibility

Designed as an OEM-style hydraulic swivel fitting for 1/2-inch hydraulic hose assemblies using 7/8-14 SAE ORB threaded ports, consistent with SAE 140157 standards.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the O-ring for damage before installation and ensure the port seat is clean and free of debris to achieve a proper seal. Do not overtighten — follow SAE torque guidelines for the applicable port size and material.
