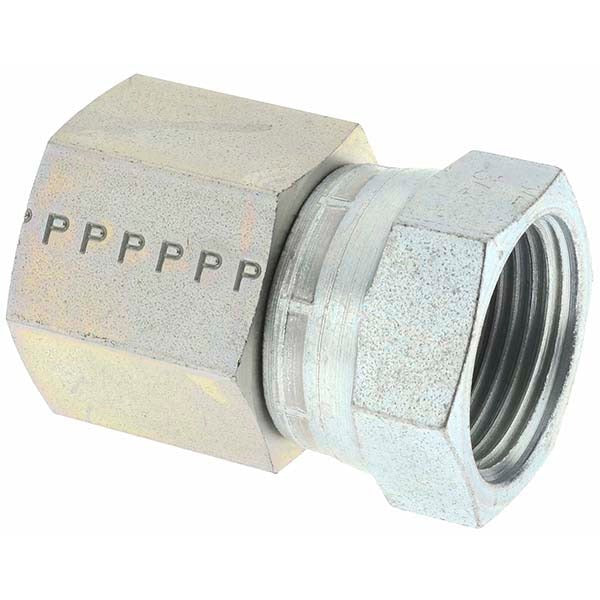

Parker KP65432 Hydraulic Hose Swivel Fitting 4000 Psi

Product Description

The PARKER KP65432 is a straight hydraulic hose swivel fitting designed for high-pressure fluid power systems. Constructed from steel, it provides a reliable, rotatable connection that reduces hose twisting during assembly and system operation. Rated to 4,000 psi maximum working pressure, this fitting accepts a 3/4-inch hose diameter with a 3/4-14 NPTF threaded connection. At 1.97 inches in overall length, it fits into compact plumbing configurations where space is limited. Licensed hydraulic technicians and fluid power specialists install this type of fitting in industrial, mobile, and stationary hydraulic circuits.

This swivel fitting is suited for straight-run hydraulic hose assemblies in applications where hose rotation or alignment adjustment is required at the connection point. The NPTF thread form creates a pressure-tight mechanical seal without relying solely on sealant tape, making it appropriate for high-pressure hydraulic lines in industrial machinery, mobile equipment, and fluid transfer systems. It is supplied in a package quantity of two.

Key Features

• 4,000 psi maximum working pressure rating for demanding hydraulic service
• Swivel design allows hose rotation to prevent twist and reduce stress at connection points
• NPTF threaded connection provides a dry-seal, pressure-tight fit
• Straight body shape simplifies in-line hose routing
• Steel construction for durability in high-pressure hydraulic environments
• Compact 1.97-inch overall length suits tight installation spaces

Compatibility

Designed as an OEM-style replacement or service fitting for straight hydraulic hose assemblies using 3/4-inch hose diameter and 3/4-14 NPTF threaded ports, conforming to SAE 140131 standards, Series 0207.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and fully isolate the hydraulic circuit before disconnecting or installing any fittings. NPTF fittings rely on thread interference for sealing; inspect threads carefully before assembly and follow the fitting manufacturer and system designer torque guidelines. Do not over-tighten, as this can damage the dry-seal thread form and result in leaks.
