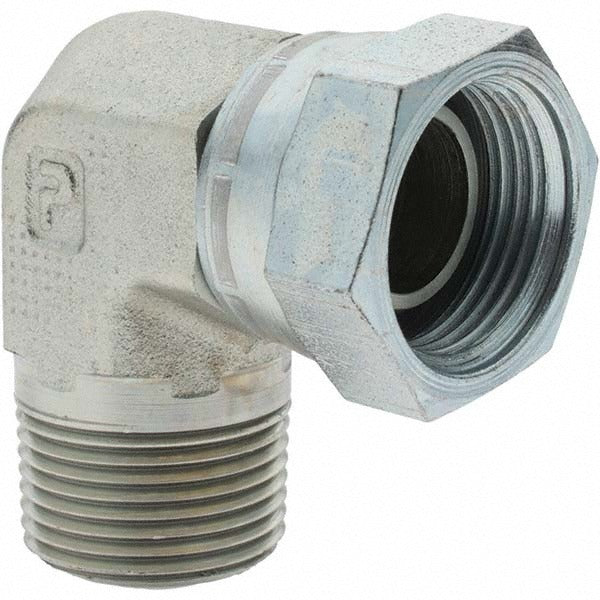

Parker KP65429 Hydraulic Swivel Fitting 3000 Psi 90 Deg

Product Description

The PARKER KP65429 is a 90-degree elbow swivel fitting designed for hydraulic hose assemblies operating at up to 3,000 psi. Constructed from steel with a male NPTF threaded connection, this fitting provides a secure, leak-resistant joint in high-pressure hydraulic circuits. The swivel design allows for hose positioning and routing flexibility without twisting the hose during installation. It carries a 3/4-14 thread size and is rated to 3,000 psi maximum working pressure. This fitting is part of the Parker Series 2107 line and conforms to SAE 140230 standards. It is installed by hydraulic system technicians and fluid power specialists in industrial, mobile, and OEM equipment applications.

This fitting is suited for hydraulic hose installations where a 90-degree directional change is required at a threaded port. The male NPTF thread seals on the thread form itself, making it appropriate for steel manifolds, valve bodies, cylinders, and pump ports in both mobile and stationary hydraulic systems. The swivel capability reduces stress on the hose during final tightening and allows proper hose routing in tight or congested equipment envelopes. This SKU is packaged in a quantity of 2 per package.

Key Features

• 3,000 psi maximum working pressure rating for demanding hydraulic service
• 90-degree elbow configuration for directional hose routing
• Swivel design reduces hose twist during installation and allows post-assembly positioning
• Male NPTF thread seals on thread form for reliable leak-free connection
• Steel construction for durability in high-pressure hydraulic environments
• Conforms to SAE 140230 standard; Parker Series 2107

Compatibility

Designed for use with 3/4-inch hydraulic hose assemblies requiring a 3/4-14 male NPTF threaded port connection in systems rated up to 3,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. NPTF threads rely on thread-form interference for sealing; inspect threads for damage before assembly and apply appropriate thread sealant per system requirements. Do not overtighten, as this can crack fittings or distort port threads.
