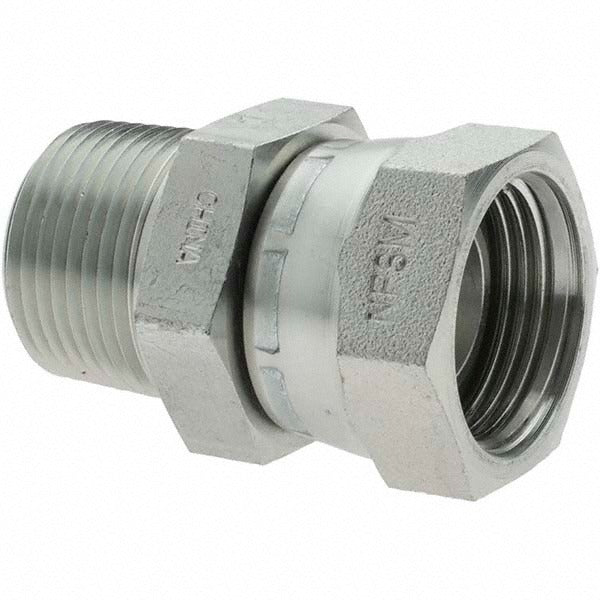

Parker KP65427 Hydraulic Swivel Fitting 4000 Psi 3/4-14

Product Description

The PARKER KP65427 is a straight hydraulic hose swivel fitting designed for high-pressure fluid transfer applications in industrial and mobile hydraulic systems. Constructed from steel, this fitting features a male NPTF threaded connection at 3/4-14 and is rated for a maximum working pressure of 4,000 psi. The swivel design allows the hose to rotate freely during installation and operation, reducing torsional stress on the hose assembly. It is part of the Parker Series 0107 line and conforms to SAE 140130 standards. Licensed hydraulic technicians and industrial mechanics install this type of fitting as part of hose assembly work on hydraulic circuits.

This fitting is suited for use in hydraulic hose assemblies where a straight, swiveling male NPTF connection is required. Typical applications include mobile equipment, industrial machinery, and fluid power systems operating at pressures up to 4,000 psi. The 3/4-14 NPTF thread size is a common configuration in mid-to-large hydraulic circuit connections. The package quantity is 2 units per pack, with a minimum order quantity of 1 pack.

Key Features

• Maximum working pressure of 4,000 psi for demanding hydraulic circuit use
• Male NPTF threaded connection at 3/4-14 for reliable sealing without a separate thread sealant compound
• Straight swivel design reduces hose torsion during assembly and operation
• Steel construction for durability in high-pressure fluid power environments
• Conforms to SAE 140130 standards
• Sold in packages of 2 units

Compatibility

Designed as an OEM-style replacement or serviceable component for hydraulic hose assemblies requiring a straight male NPTF swivel fitting with a 3/4-14 thread size and a 4,000 psi pressure rating.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic familiar with fluid power systems. Depressurize and bleed the hydraulic circuit completely before removing or installing any fittings. NPTF threads are designed to seal on the threads themselves, but inspect threads carefully for damage before assembly and torque to the fitting manufacturer's recommended specifications. Follow all applicable fluid power safety standards and workplace procedures when working on pressurized hydraulic systems.
