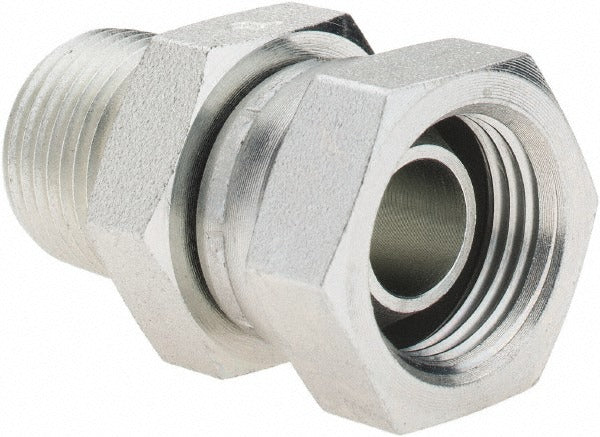

Parker KP61677 Hydraulic Hose Swivel Fitting 6000 Psi

Product Description

The PARKER KP61677 is a straight swivel fitting designed for hydraulic hose assemblies requiring a secure, leak-resistant threaded connection. Rated to 6,000 psi maximum working pressure, this fitting uses a Male NPTF thread configuration in a 3/8-18 thread size, providing a pressure-tight seal without additional sealant. Constructed from steel, it delivers the mechanical strength needed in demanding hydraulic circuits. The swivel design allows the hose to be positioned during assembly without twisting, reducing installation stress on the hose end. Licensed plumbing and hydraulic technicians working on industrial or mobile hydraulic systems will find this fitting suitable for high-cycle, high-pressure service lines.

This fitting is intended for use in hydraulic hose assemblies where a straight, Male NPTF threaded connection is required at the hose end. It is suited for industrial equipment, mobile machinery, and other hydraulic systems operating at or below 6,000 psi. The 3/8 inch hose diameter compatibility and SAE 140130 standard compliance make it appropriate for systems where SAE-rated components are specified. Sold in packages of 4, it supports both single-connection repairs and multi-point assembly work.

Key Features

• 6,000 psi maximum working pressure for high-pressure hydraulic circuits
• Male NPTF threaded connection provides a pressure-tight mechanical seal
• Swivel design prevents hose twist during installation and routing
• Straight shape simplifies inline hose-to-port connections
• Steel construction for durability in industrial and mobile hydraulic environments
• Meets SAE 140130 standards; Series 0107

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a 3/8-18 Male NPTF straight swivel connection rated to 6,000 psi, conforming to SAE 140130.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with high-pressure fluid systems. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. NPTF threads are designed for a dry, pressure-tight seal, but verify system requirements before applying thread sealant. Inspect threads and sealing surfaces for damage before assembly and torque to the hydraulic system manufacturer's specifications.
