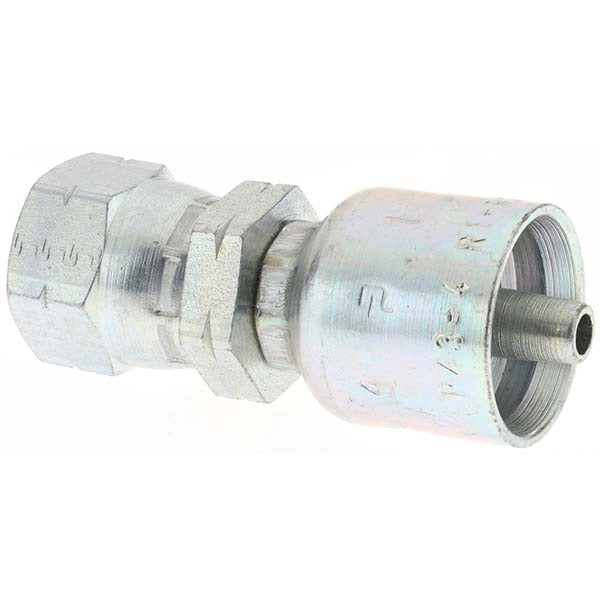

Parker KP46926 Female Jic 37 Swivel Fitting 0.25 in Steel

Product Description

The PARKER KP46926 is a straight female JIC 37-degree swivel fitting designed for hydraulic hose assemblies in fluid power systems. It features a 0.25 inch (1/4 inch) hose inside diameter, a 5/8-18 threaded connection, and a steel body construction. At 2.11 inches overall length, this fitting provides a compact inline connection point where the swivel design allows the hose to be positioned without twisting the assembly. It is installed by hydraulic technicians and fluid power specialists working on mobile equipment, industrial machinery, and related hydraulic circuits.

This fitting is suited for use in hydraulic hose assemblies where a straight female JIC 37-degree swivel termination is required at the hose end. It is compatible with a wide range of Parker hose series including 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hoses, covering TC and ST configurations where noted. Typical applications include mobile hydraulic systems, industrial presses, and fluid transfer lines requiring a secure JIC swivel connection.

Key Features

• Straight female JIC 37-degree swivel design allows hose positioning without torquing the assembly
• Steel body construction for durability in high-pressure hydraulic service
• 0.25 inch (1/4 inch) hose inside diameter matches standard 4 mm hose size
• 5/8-18 thread size for compatibility with JIC-standard ports and adapters
• 2.11 inch overall length in a compact straight configuration
• Parker Series 43 fitting for use across multiple Parker hose product lines

Compatibility

Designed for use with Parker hose series 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 in TC and ST configurations where applicable.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed down the hydraulic system fully before removing or installing any hose fittings to prevent injection injuries. Use appropriate crimping equipment and tooling specified for the hose and fitting series. Verify thread engagement and JIC seat contact before returning the system to service.
