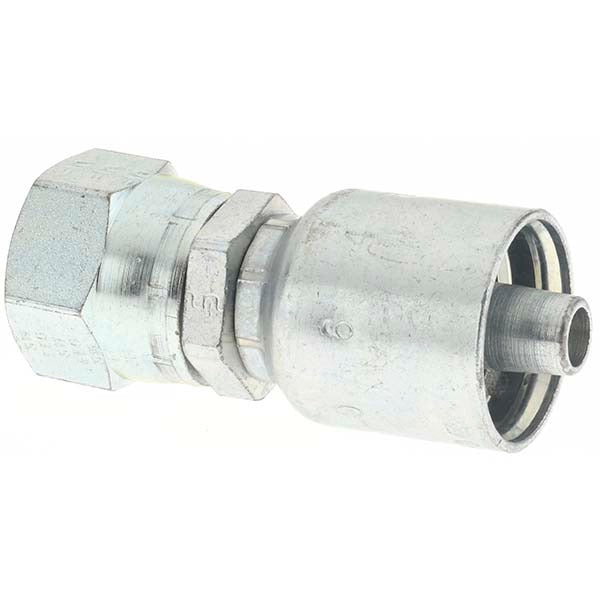

Parker KP46922 Female Jic 37 Swivel Fitting 3/8 in Steel

Product Description

The PARKER KP46922 is a straight female JIC 37-degree swivel fitting designed for hydraulic hose assemblies. Built from steel, this threaded fitting connects to the hose end with a 0.375-inch (3/8-inch) inside diameter and a 7/8-14 thread size. The swivel design allows the fitting to rotate during installation, reducing hose twist and making routing easier in tight spaces. At 2.51 inches overall length, it is a compact inline connection point suitable for high-pressure hydraulic circuits. Installation is performed by qualified hydraulic technicians in industrial, mobile, and stationary hydraulic system applications.

This fitting is sized for hose size 6 and is compatible with a wide range of Parker hydraulic hose series. It suits applications requiring a female JIC 37-degree flare connection at the hose end, including mobile equipment hydraulics, industrial machinery, and fluid power systems. The straight profile is appropriate for runs where the hose exits in line with the port and no angle offset is needed. Sold in a package of 4.

Key Features

• Straight female JIC 37-degree swivel design reduces hose twist during assembly
• 0.375-inch (3/8-inch) hose inside diameter, hose size 6
• 7/8-14 thread size for standard JIC port connections
• Steel construction for durability in hydraulic service
• 2.51-inch overall length in a compact straight profile
• Meets ISO 12151-5 standards; California Proposition 65 compliant

Compatibility

Designed for use with Parker 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses.

Installation Notes

Hydraulic fittings should be installed by qualified hydraulic technicians familiar with applicable fluid power standards. Depressurize and bleed the hydraulic system fully before removing or installing any fittings or hose assemblies. Use appropriate wrenching flats and calibrated torque tools as specified by system design requirements. Inspect the JIC 37-degree flare seating surface for nicks or damage before assembly to ensure a leak-free connection.
