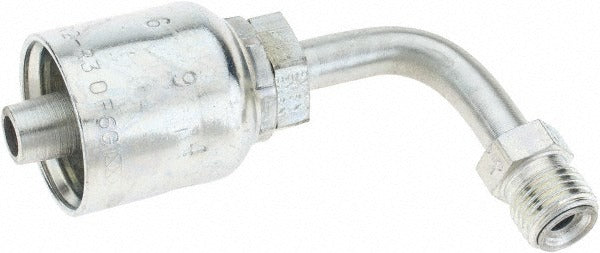

Parker KP46892 Hydraulic Hose 90 Degree Elbow Fitting

Product Description

The PARKER KP46892 is a 90-degree elbow hydraulic hose fitting manufactured from steel for use in hydraulic fluid conveyance systems. It accepts a 6 mm hose size with a 3/8-inch hose diameter and connects via a 1/2-20 inch thread. The 90-degree elbow geometry allows hose routing in tight quarters where a straight fitting would create excessive bending stress on the hose. This fitting is installed by hydraulic technicians and fluid power mechanics in mobile equipment, industrial machinery, and stationary hydraulic power units. Its steel construction provides the mechanical strength required for pressurized hydraulic line connections.

This fitting is suited for hydraulic hose assemblies where a 90-degree directional change is required at the hose-to-component interface. Typical applications include routing hoses around structural members, bulkheads, or equipment housings in mobile hydraulic systems such as construction equipment, agricultural machinery, and industrial presses. It is appropriate for installations where hose movement and vibration demand a secure, close-coupled elbow connection rather than a swept or bent hose run.

Key Features

• 90-degree elbow configuration for compact hose routing in confined spaces
• Steel construction for durability in pressurized hydraulic applications
• 6 mm hose size with 3/8-inch hose diameter compatibility
• 1/2-20 inch thread for positive, leak-resistant connection
• Sold in packages of 4 units per pack

Compatibility

Designed as an OEM-style replacement hydraulic hose elbow fitting for hydraulic hose assemblies requiring a 6 mm, 3/8-inch diameter hose with a 1/2-20 inch threaded end connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and lock out the hydraulic system completely before disconnecting or replacing any hose fittings. Use the appropriate thread sealant or fitting assembly method specified for 1/2-20 hydraulic threads, and inspect the mating port and hose end for damage before assembly. Torque the fitting to the hydraulic system manufacturer's specifications for the port and fitting type in use.
