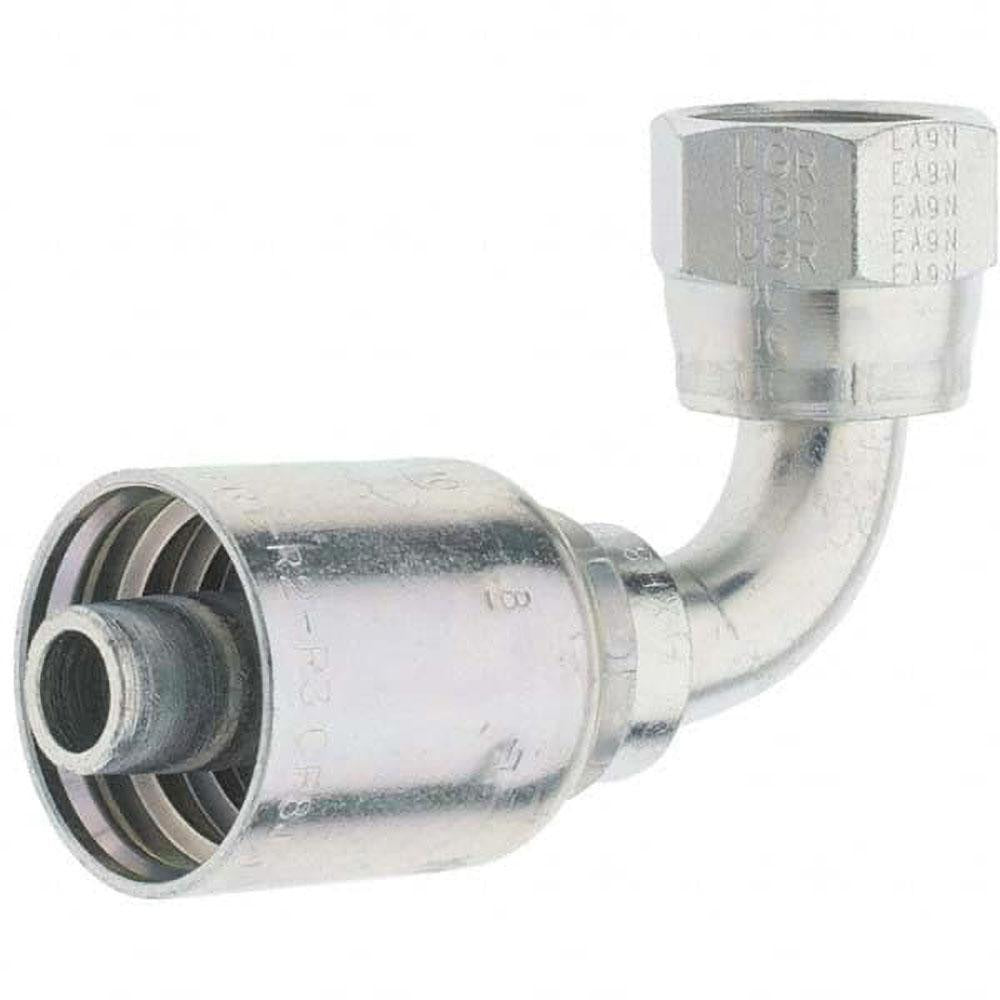

Parker KP46877 Female Jic Swivel 90 Elbow 0.625 in Id

Product Description

The PARKER KP46877 is a female JIC swivel 90-degree elbow hose fitting designed for hydraulic fluid-power systems. Machined from steel with a threaded connection, this fitting accepts a 0.625-inch (5/8-inch) inside-diameter hose on the hose end and a 1-1/16-12 JIC thread on the port end. The 90-degree elbow geometry allows hose routing in tight spaces where a straight fitting cannot clear adjacent components or structural members. It is sold in a package quantity of two and is intended for installation by hydraulic technicians and fluid-power mechanics on mobile and industrial equipment.

This fitting is applied wherever a hose assembly must transition from a straight run to a 90-degree angle at the equipment port. It is suited for medium- and high-pressure hydraulic lines on mobile machinery, industrial power units, and equipment requiring frequent hose replacement or repositioning. The swivel feature allows the hose to be positioned without twisting the hose body during final torque of the port connection, simplifying assembly and reducing hose stress.

Key Features

• Female JIC swivel design allows hose positioning without twisting the hose during assembly
• 90-degree elbow geometry enables compact hose routing around obstructions
• Steel construction provides durability in demanding hydraulic service environments
• 1-1/16-12 JIC thread size for secure, leak-resistant port connections
• Threaded connection type for straightforward installation with standard hydraulic tooling
• Compliant with ISO 12151-5 and subject to California Proposition 65 requirements

Compatibility

Designed for use with Parker hose series 187 TC ST, 302, 304, 387 TC ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 hoses with a 0.625-inch (10 mm) inside diameter.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid-power systems and JIC fitting assembly procedures. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Use calibrated torque tooling appropriate for the fitting size and material; consult the system manufacturer and applicable fluid-power standards for torque guidelines. Inspect the JIC seating surfaces for nicks or damage before assembly, and confirm the swivel rotates freely before final tightening.
