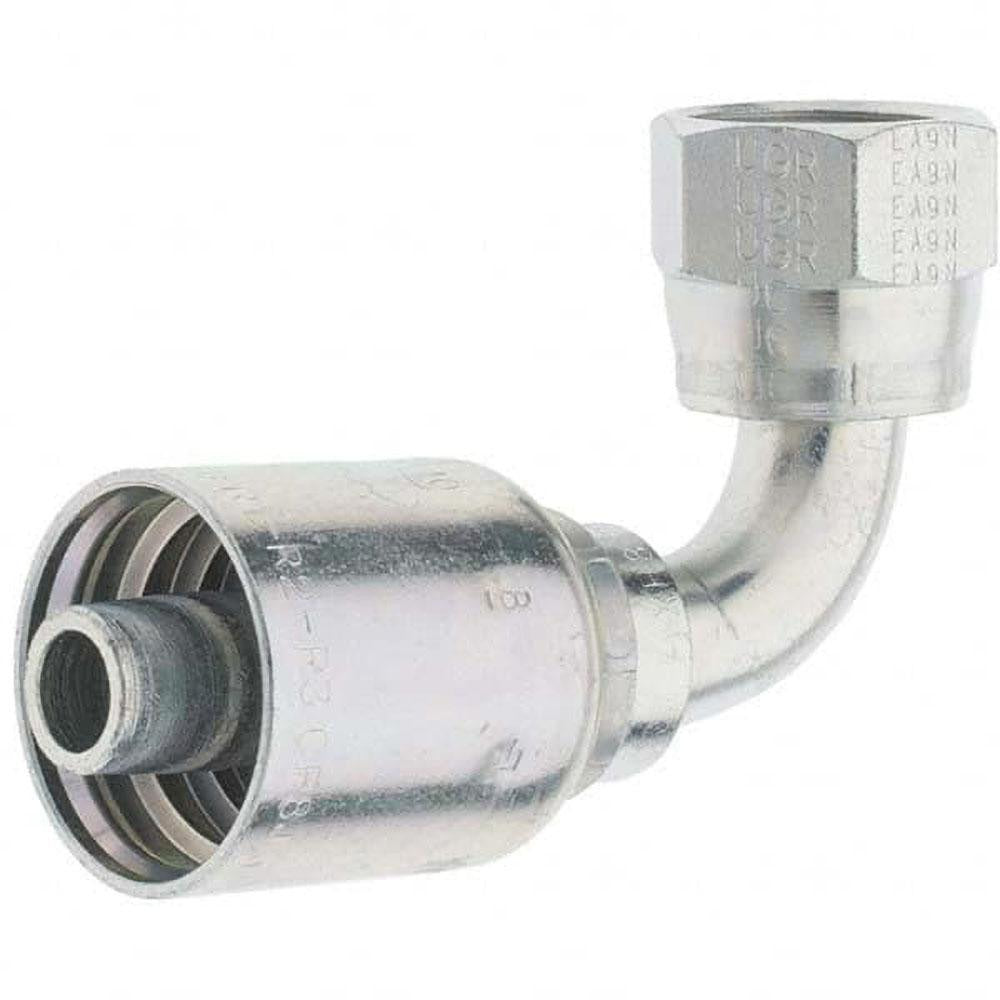

Parker KP46875 Female Jic Swivel 90 Elbow 0.5 in Hose Fitting

Product Description

The PARKER KP46875 is a female JIC swivel 90-degree elbow hose fitting designed for hydraulic systems. Manufactured from steel, it connects hydraulic hoses to system components where a right-angle routing path is required. The fitting accepts hoses with a 0.5-inch (1/2-inch) inside diameter and uses a 1-1/16-12 thread size for a secure, leak-resistant threaded connection. The swivel design allows the hose to be positioned without twisting during assembly and final torque. This fitting is installed by hydraulic system technicians and industrial maintenance professionals working on fluid power assemblies.

This fitting is intended for use in hydraulic hose assemblies where a 90-degree change in line direction is needed. It is compatible with Parker Series 43 hydraulic hose assemblies and suits applications across industrial, mobile, and stationary hydraulic equipment. The 1-1/16-12 thread size is a standard JIC designation, making this fitting a practical replacement or assembly component in systems requiring 1/2-inch hose connections with female JIC swivel terminations.

Key Features

• Female JIC swivel 90-degree elbow configuration for right-angle hose routing
• 0.5-inch (1/2-inch) hose inside diameter, hose size 8
• 1-1/16-12 thread size for standard JIC threaded connections
• Steel construction for durability in high-pressure hydraulic service
• Swivel design prevents hose twist during assembly
• Meets ISO 12151-5 standards; California PROP 65 compliant

Compatibility

Designed for use with Parker 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses. Part of Parker Series 43 fittings.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Always depressurize and bleed the hydraulic system completely before removing or installing any fittings. Inspect mating threads and seating surfaces for damage before assembly. Torque to the system or hose manufacturer specifications using appropriate hydraulic fitting tools; do not over-tighten, as this can damage the JIC seat.
