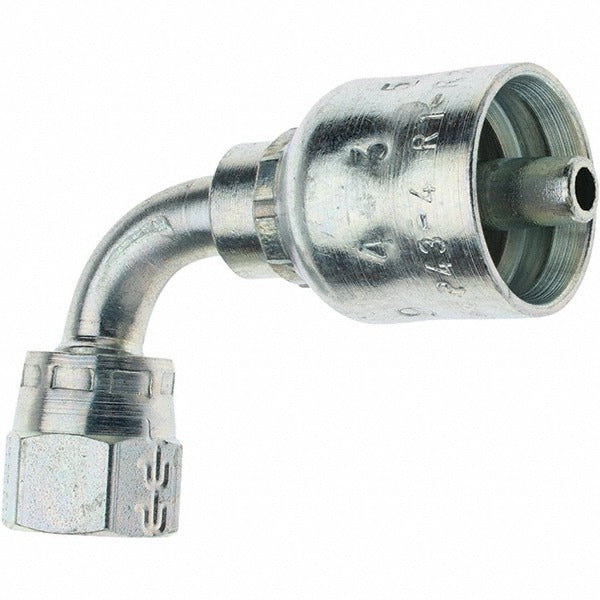

Parker KP46870 Female Jic Swivel 90 Elbow 1/4 in Hose

Product Description

The PARKER KP46870 is a female JIC swivel 90-degree elbow fitting designed for hydraulic hose assemblies. Machined from steel with threaded connection, this fitting attaches to hose with a 0.25-inch inside diameter and uses a 1/2-20 thread size. The 90-degree elbow geometry allows routing in tight spaces where a straight or angled fitting would interfere with adjacent components. It is part of the Parker Series 43 fitting line and is installed by hydraulic system technicians in mobile, industrial, and fluid-power applications. The swivel feature allows for easy alignment during final assembly without rotating the hose.

This fitting is suited for hydraulic systems where hose routing must change direction close to a port or component. The female JIC swivel design is common in both mobile equipment and stationary fluid-power installations. It is compatible with a range of Parker hydraulic hose products, making it a standard choice for service, repair, and new-build assemblies that require a compact 90-degree transition at a JIC-threaded port.

Key Features

• Female JIC swivel design allows rotational alignment without twisting the hose
• 90-degree elbow shape enables tight-space routing close to ports or bulkheads
• 1/2-20 thread size for consistent engagement with standard JIC-threaded ports
• Steel construction for durability in high-pressure hydraulic service
• Part of Parker Series 43 fitting line
• Meets ISO 12151-5 dimensional and performance standards

Compatibility

Compatible with Parker 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses with 0.25-inch inside diameter.

Installation Notes

Installation is typically performed by qualified hydraulic technicians or millwrights. Depressurize and drain the hydraulic system fully before removing or installing any fittings. Use appropriate wrenching flats and calibrated torque tools per system requirements. Inspect the JIC seating surfaces for scoring or contamination before assembly to ensure a leak-free connection.
