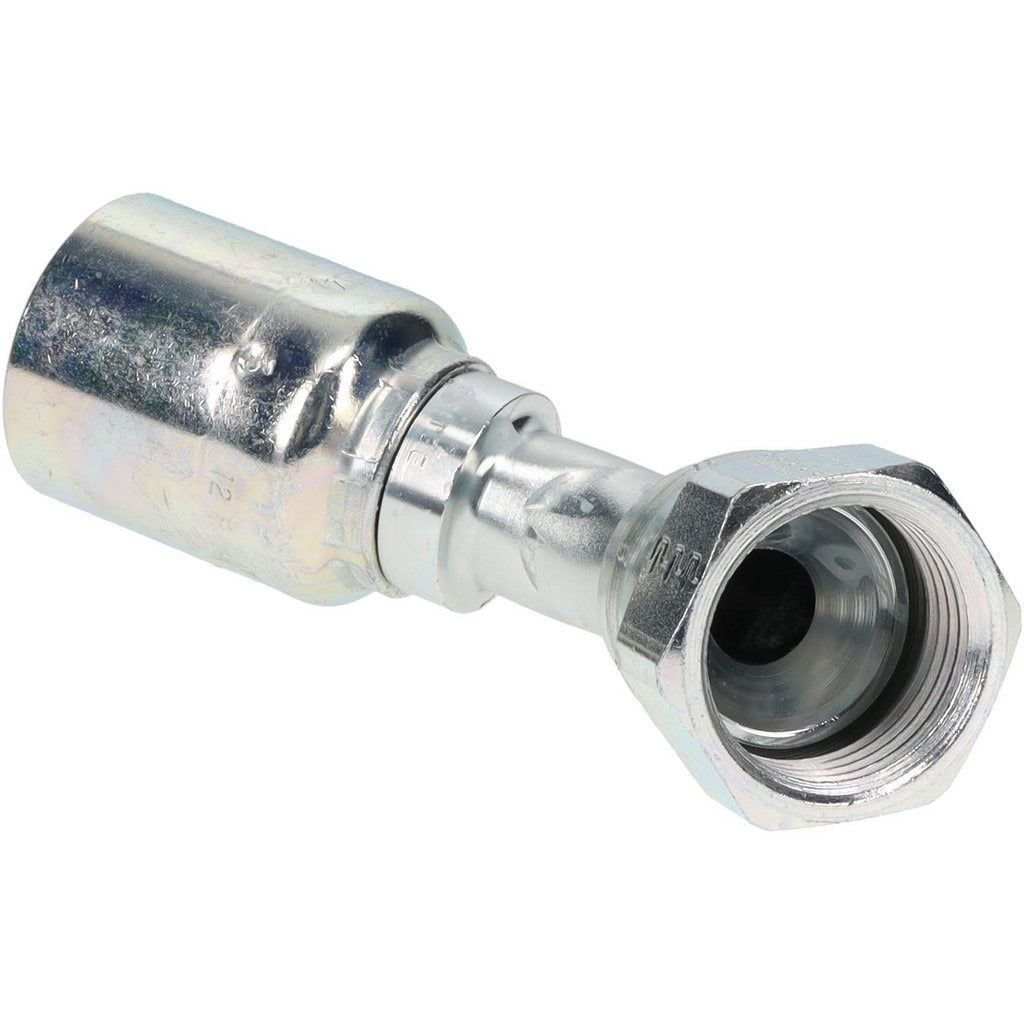

Parker KP46869 Hydraulic Hose Fitting 45 Degree Elbow

Product Description

The PARKER KP46869 is a 45-degree elbow hydraulic hose fitting designed for use with a wide range of Parker hydraulic hose assemblies. Constructed from steel with a Female JIC threaded connection, this fitting accepts hoses with a 0.625 inch (5/8 inch) inside diameter and uses a 1-1/16-12 thread size. It is part of the Parker Series 43 fitting line, which is engineered for reliable, leak-resistant connections in medium- to high-pressure hydraulic systems. Hydraulic technicians and fluid power specialists install these fittings in mobile equipment, industrial machinery, and construction applications.

This fitting is suited for hydraulic plumbing on mobile and stationary equipment where a 45-degree directional change is needed to route hose assemblies through tight spaces or around obstructions. The Female JIC thread configuration provides a metal-to-metal seating connection that resists vibration loosening. Sold in a package quantity of two, this part is a practical choice for shops and field technicians maintaining hydraulic circuits that require precise angular transitions.

Key Features

• 45-degree elbow geometry for directional routing in confined hydraulic installations
• Female JIC threaded connection with 1-1/16-12 thread size for secure metal-to-metal seal
• 0.625 inch (5/8 inch) hose inside diameter, Hose Size 10
• Steel construction for durability in hydraulic service environments
• Compliant with ISO 12151-5 hose fitting standards
• Sold as a package of 2 fittings per SKU

Compatibility

Compatible with Parker hose series: 187 TC ST, 302, 304, 387 TC ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Use appropriate fitting assembly tools and follow Parker torque and assembly guidelines for JIC connections. Inspect threads and seating surfaces for damage before assembly to ensure a proper seal.
