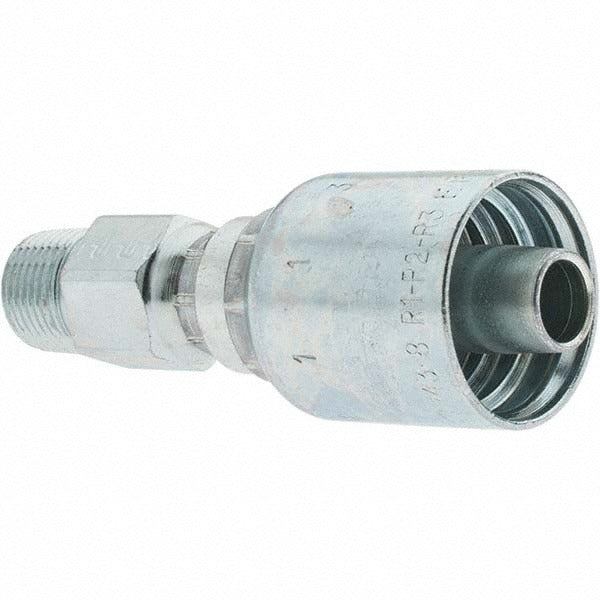

Parker KP46845 Male Npt Swivel Fitting 0.5 in Straight

Product Description

The PARKER KP46845 is a male NPT swivel fitting designed for hydraulic hose assemblies in industrial and mobile hydraulic systems. Manufactured from steel with a straight shape and threaded connection type, this fitting features a 1/2-inch hose inside diameter and a 3/8-18 NPTF thread. The overall length is 3.3 inches. The male NPTF shaft type provides a pressure-tight seal on tapered pipe thread connections. This fitting is sold in packages of four and is intended for installation by qualified hydraulic system technicians and fluid power professionals.

This fitting is used in hydraulic hose assemblies where a swivel connection at a male NPTF port is required. It is suited for both stationary industrial equipment and mobile hydraulic applications. The straight configuration makes it appropriate for inline connections where hose routing does not require an angled adapter. Its steel construction handles the pressure and mechanical demands common in production, agricultural, and construction hydraulic circuits.

Key Features

• Male NPTF shaft type for pressure-tight tapered pipe thread connections
• 1/2-inch hose inside diameter with 3/8-18 thread size
• Straight shape for inline hydraulic hose assembly installations
• Steel construction for durability in demanding hydraulic applications
• 3.3-inch overall length
• Sold in a package quantity of four units

Compatibility

Compatible with Parker hose series 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disassembling any hose or fitting. Use appropriate thread sealant compatible with hydraulic fluid and follow NPTF thread engagement requirements per applicable standards. Inspect mating port threads for damage or contamination before assembly.
