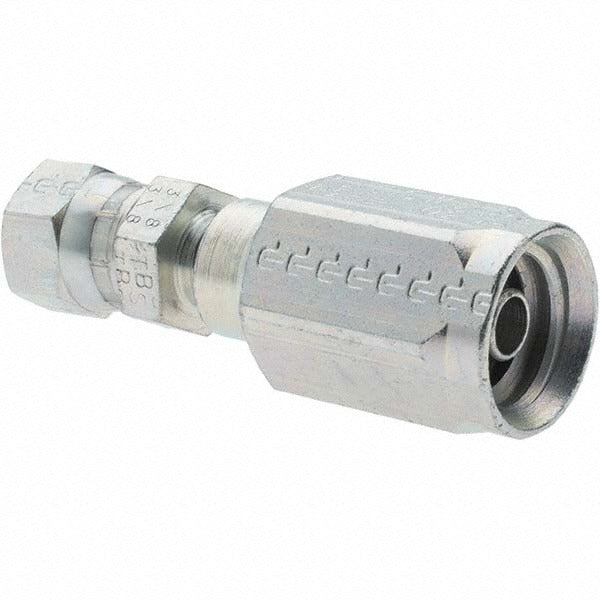

Parker KP38586 Female Jic 37 Degree Swivel Fitting 3/8 in

Product Description

The PARKER KP38586 is a female JIC 37-degree swivel fitting designed for hydraulic hose assemblies. It connects 3/8-inch hose ends to JIC-threaded ports, allowing rotational alignment during installation without stressing the hose or downstream connection. The 37-degree flare seating surface provides a reliable metal-to-metal seal suited for high-pressure hydraulic circuits. This fitting is installed by hydraulic technicians and maintenance mechanics working on mobile equipment, industrial machinery, and fluid power systems.

This fitting is used in hydraulic plumbing applications where a swivel-end female JIC connection is required at the hose termination point. The 37-degree flare angle is a standard JIC configuration common across industrial and mobile hydraulic circuits. It is appropriate for use in both new hose assembly fabrication and replacement fitting work on existing systems. The package quantity is 2 pieces per unit.

Key Features

• 37-degree JIC flare seating for metal-to-metal seal integrity
• Swivel design allows rotational positioning during assembly without twisting the hose
• 3/8-inch hose size compatibility for common mid-range hydraulic hose assemblies
• Female JIC shaft type for standard JIC port connections
• Sold in packs of 2 to support common two-end hose assembly jobs

Compatibility

Designed as an OEM-style replacement or new-assembly fitting for 3/8-inch hydraulic hose with female JIC 37-degree swivel terminations in industrial and mobile hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed down the hydraulic system fully before removing or installing any fittings. Hand-tighten the swivel nut onto the JIC port before applying final wrench torque, and confirm the flare seats squarely before tightening. Follow equipment manufacturer specifications and applicable fluid power standards for final assembly torque values.
