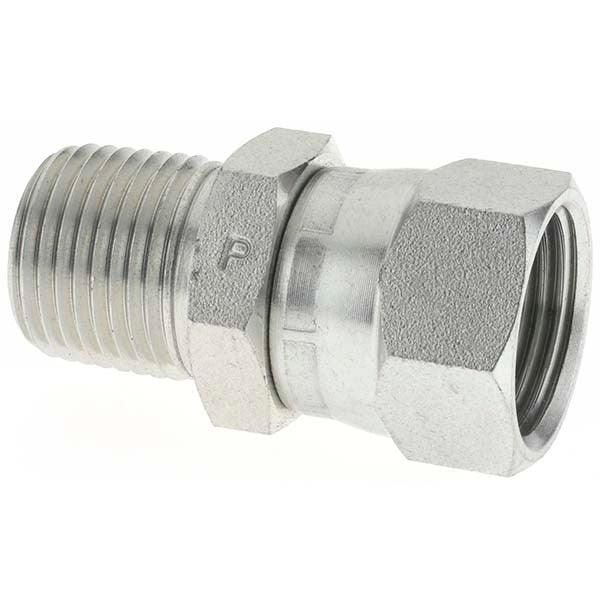

Parker KP24542 Steel Flared Tube Connector 5/8 in

Product Description

The PARKER KP24542 is a steel flared tube connector designed for high-pressure fluid and gas line applications. It features a 37-degree flare end on the tube side and a 1/2-14 NPTF threaded end on the port side, providing a reliable metal-to-metal seal. With a maximum working pressure of 5000 psi and a maximum working temperature of 500 degrees F, this connector is built for demanding hydraulic, pneumatic, and refrigeration line installations. It is typically installed by licensed plumbers, pipefitters, and HVAC technicians working with flared tubing systems.

This connector is suited for use in industrial, commercial, and trade applications where a straight flare-to-NPTF transition is required. The 5/8 inch tube OD and 1/2-14 thread size make it a common choice for medium-bore hydraulic and fluid power lines. It is packaged in a quantity of 2 per package, making it practical for jobs requiring multiple connections. The steel construction ensures durability in high-cycle or high-vibration environments.

Key Features

• 37-degree flare end meets SAE J514 and ISO 8434-2 standards
• 1/2-14 NPTF thread provides a pressure-tight port connection without sealant tape in many applications
• Rated to 5000 psi maximum working pressure
• Rated to 500 degrees F maximum working temperature
• Steel construction for durability in industrial and mechanical service
• Sold in a package quantity of 2

Compatibility

Designed as an OEM-style replacement or new-installation flared tube connector for hydraulic, pneumatic, and fluid power systems using 5/8 inch OD flared tubing with 1/2-14 NPTF port connections.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or hydraulic technician. Depressurize and isolate the line completely before removing any existing fittings or making new connections. Inspect the flare seat and tube flare for damage before assembly, as a compromised flare face will prevent a proper seal. Torque to the fitting manufacturer specifications using appropriate flare fitting wrenches to avoid over-torquing the flare connection.
