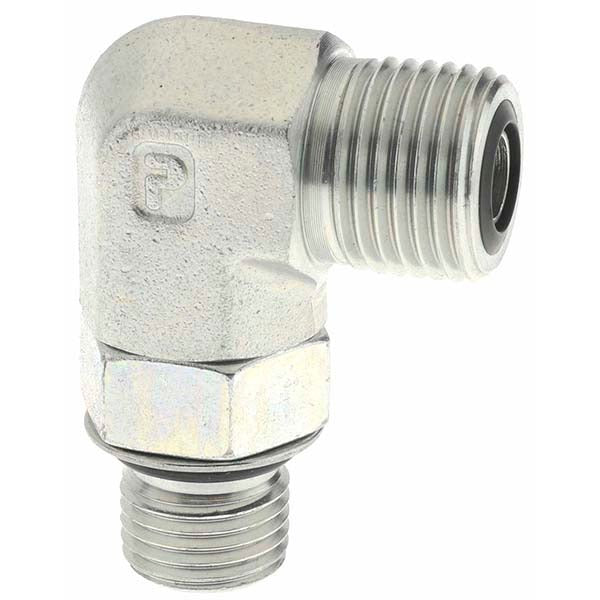

Parker KP24512 Male Elbow Fitting 11/16-16 Sae-orb

Product Description

The PARKER KP24512 is a compression tube male elbow fitting designed for high-pressure hydraulic and fluid power plumbing applications. It connects tubing to a port using an O-Ring Face Seal (ORFB) end connection paired with an SAE-ORB straight thread, providing a leak-resistant seal without relying on thread deformation. Manufactured from zinc-plated steel for corrosion resistance, the KP24512 carries a maximum working pressure rating of 6000 psi and conforms to SAE J1453. It is installed by licensed plumbers, hydraulic technicians, and fluid system mechanics working on mobile equipment, industrial machinery, and HVAC fluid circuits.

This fitting is suited for use in hydraulic lines, lubrication systems, and other fluid power assemblies where a 90-degree direction change is needed. The 11/16-16 thread size on the male end and the 9/16-18 straight thread are common in medium-duty hydraulic plumbing found in both mobile and stationary equipment. The zinc-plated steel construction holds up in moderate-exposure environments where bare steel would corrode. Sold in packages of four, the KP24512 is a practical stock item for service shops and maintenance facilities.

Key Features

• Maximum working pressure of 6000 psi for demanding hydraulic service
• O-Ring Face Seal end connection per SAE J1453 for reliable leak-free performance
• SAE-ORB straight thread size of 9/16-18 for secure port engagement
• Zinc-plated steel construction resists corrosion in moderate-exposure environments
• 90-degree male elbow configuration for inline direction changes in tight plumbing runs
• Packaged in quantities of four to support shop stocking and repeat service calls

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid power systems requiring an SAE J1453 O-Ring Face Seal male elbow with an 11/16-16 thread size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber familiar with SAE fitting standards and fluid power safety practices. Depressurize and drain the system completely before removing or installing any fittings. Verify that the mating port thread and O-ring groove dimensions match the fitting specifications before assembly. Inspect the O-ring for damage and ensure proper seating to achieve the rated leak-free performance.
